Analytical Balance

IB-A(I)
IB-A(I)

Analytical Balance

INNOVA analytical balance with 0.1mg resolution, different ranges can be selected, equipped with external or internal calibration functions.


Inquire Now

FEATURES

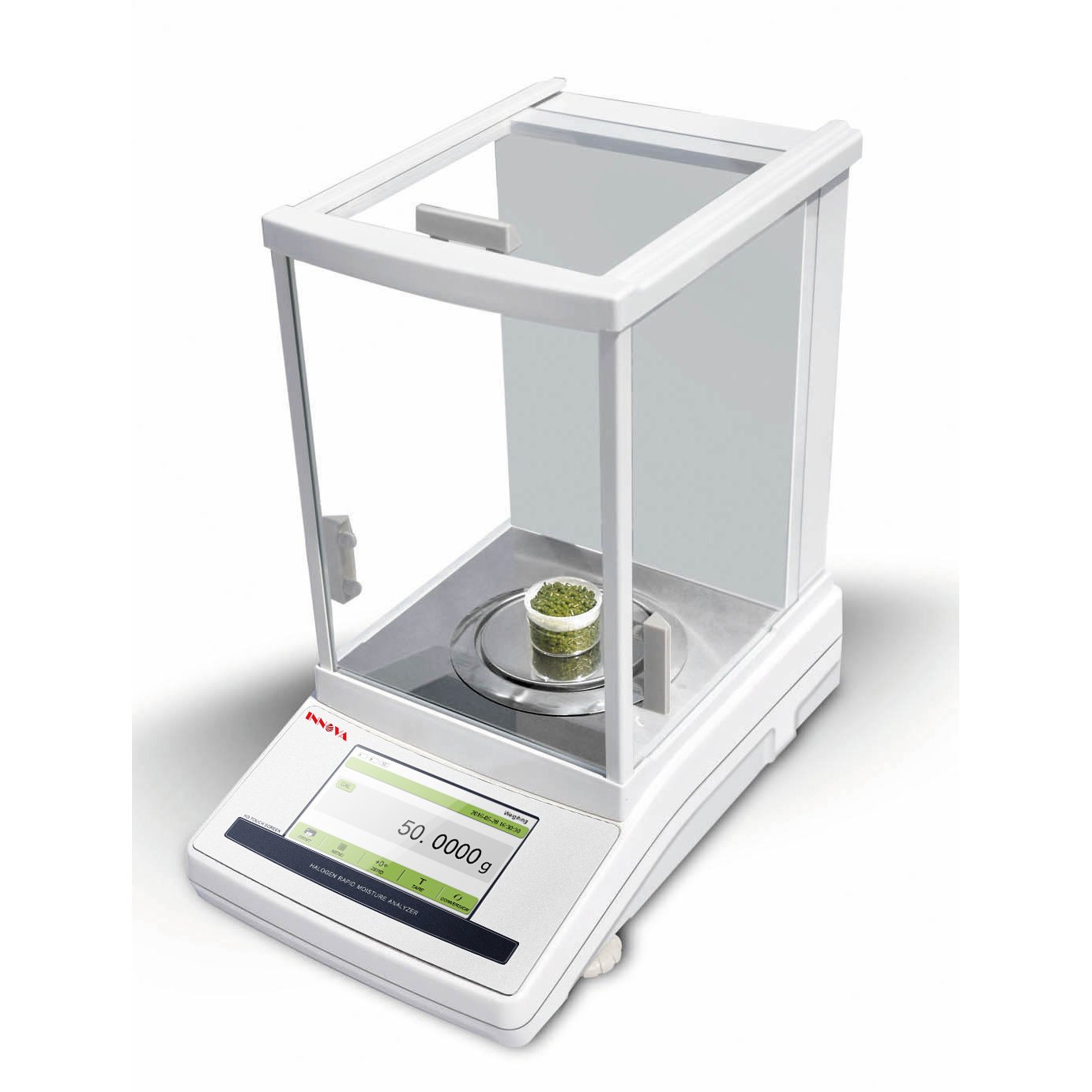

IB-T series



  • Internal auto-calibration

  • 5 Inch touch panel

  • One key/Time trigger internal calibration

  • Electromagnetic force sensor

  • Aluminum shell/Large space windproof cover

  • Tare function/Counting/Density/Percentage

  • Unit conversion(g/mg/ct/oz)...

  • Under weighing

  • Sensitivity/Speed set

  • Overload alarm/Fault alarm/Level indicator

  • Option: Density kit (Solid/Liquid)

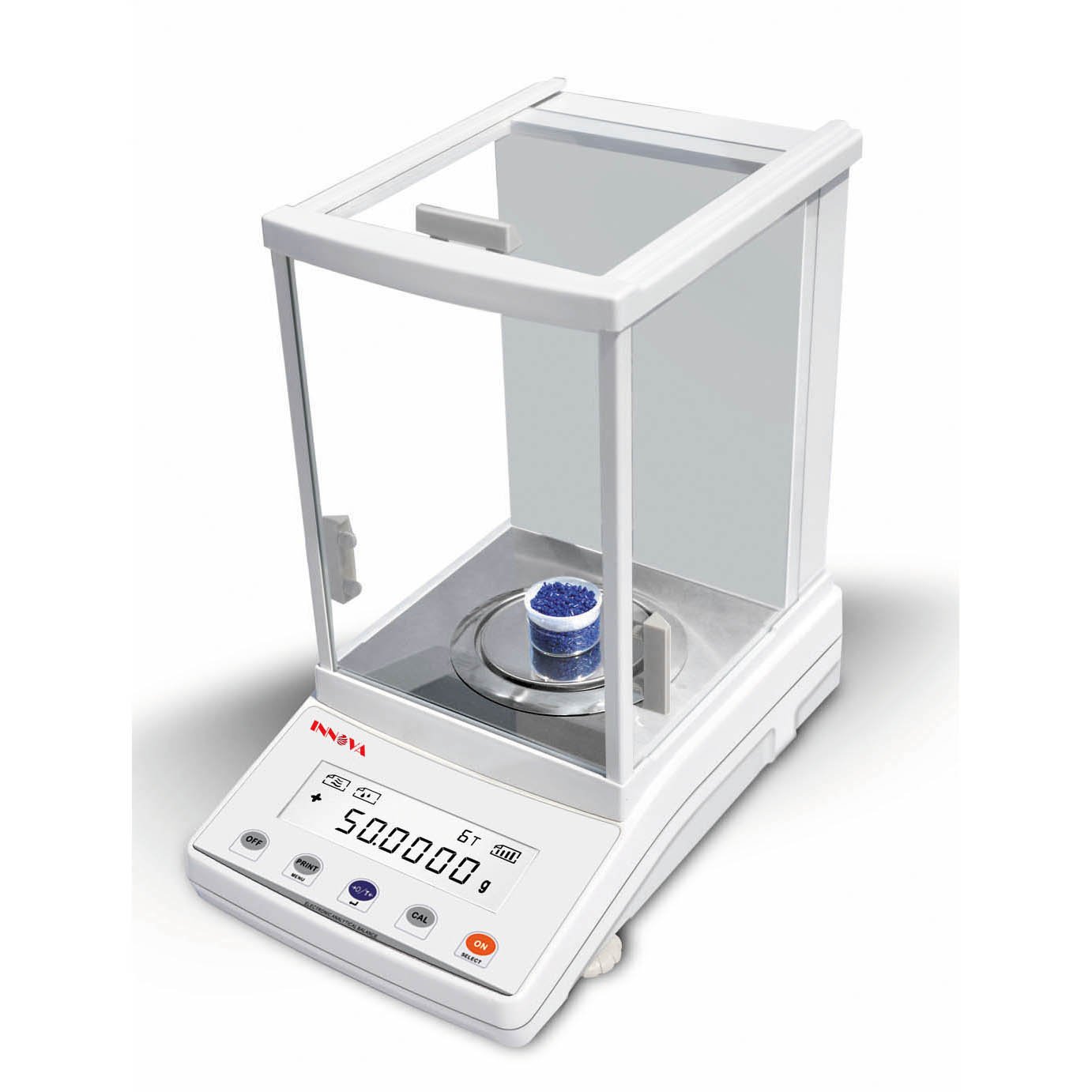

IB-E(N) series



  • Internal auto calibration for IB-EN

  • Electromagnetic force sensor

  • LCD (White backlight with black font)

  • Tare function/Counting/Unit conversion

  • Sensitivity/Speed set/Percentage

  • Accumulation function/peak hold/Upper and lower set

  • Dynamic weighing/Net and Gross/Clock function (option)

  • Print function(baud rate setting,Continuous communicationor press communication)

  • Calibration time setting

  • Overload alarm/Fault alarm/Level indicator

  • Option:USB / printer

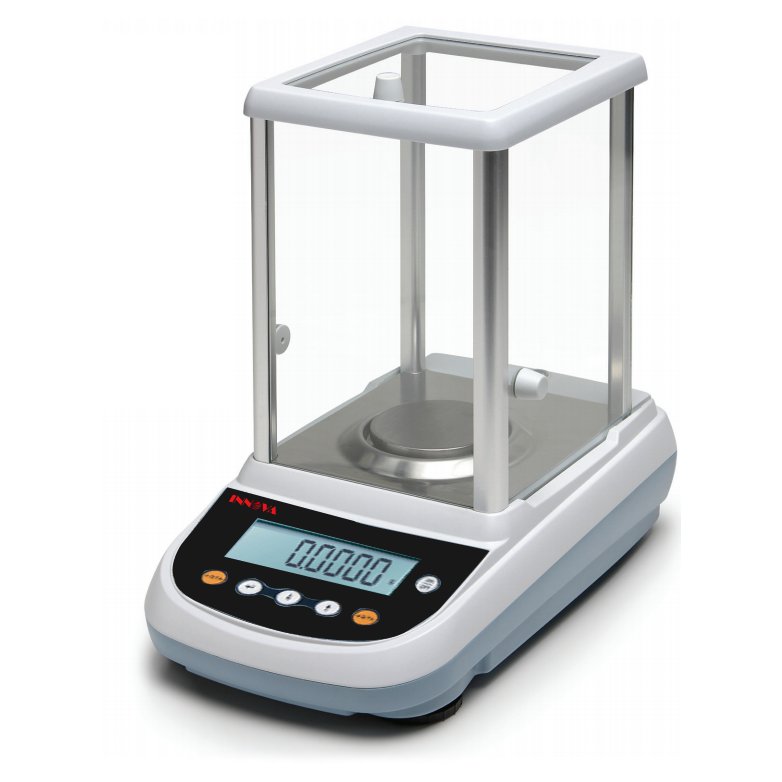

IB(N) series



  • Internal auto calibration for IB-N

  • LCD (White back light with black font)

  • One key/Time trigger internal calibration

  • Electromagnetic force sensor

  • Aluminum shell/Large space wind proof cover

  • Tare function/Counting/Percentage

  • Unit conversion(g/mg/ct/oz)...

  • Under weighing

  • Sensitivity/Speed set

  • Overload alarm/Fault alarm/Level indicator

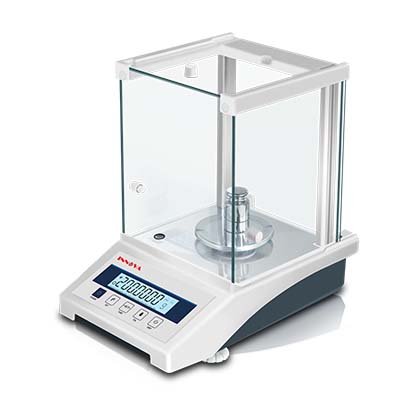

IB-AI series



  • Internal calibration

  • LCD (White backlight with black font)

  • One key/Time trigger internal calibration

  • Electromagnetic force sensor

  • Glass draft shield with 3 sliding doors for easy

  •  access to the items being weighed

  • Tare function/Counting/Percentage

  • Unit conversion(g/mg/ct/oz)...

  • Sensitivity/Speed set

  • Overload alarm/Fault alarm/Level indicator




SPECIFICATIONS

IB-T Series

ModelIB1004TIB2004TIB2204T

Capacity100g200g220g

Readability0.1mg

Min weighing0.0004g

Stable Time≤3s

Pan sizeΦ80mm

Operation temp15-35

Repeat ability±0.0002g

Linearity±0.0003g

Draft shield size240mm×190mm×265mm

CalibrationInternal Calibration

lnterfaceRS232(standard), USB(optional)

OptionPrinter

Packing sizeInside415×285×430mm    Outside475×315×485mm

G . weight11kg







IB-E(N) Series
ModelIB1004E(N)IB1204E(N)IB2004E(N)IB2204E(N)
Capacity100g120g200g220g
Readability0.1mg
Min weighing0.0004g
Stable Time≤3s
DisplayLCDwhite back light with black font
Pan sizeΦ80mm (standard), Φ90mm (optional)
Operation temp5-35
Repeat ability±0.0002g
Linearity±0.0003g
Dimension300×200x295mm
Draft shield size180×175×200mm
CalibrationInternal calibration for IB-EN, External calibration for IB-E
lnterfaceRS232C(standard), USB/Printer(optional)
Packing size425×320×415mm
G . weight6kg
Power100-240V   50/60Hz






IB(N) Series
ModelIB1004(N)IB1204(N)IB2004(N)IB2204(N)IB3004
Capacity100g120g200g220g300g
Readability0.1mg
Min weighing0.0004g
Stable Time≤3s
Pan sizeΦ80mm
Operation temp15-35
Repeat ability±0.0002g
Linearity±0.0003g
Dimension340x215x350mm
Draft shield size240mm×190mm×265mm
lnterfaceRS232(standard), USB(optional)
CalibrationInternal calibration for IB-N, External calibration for IB
OptionPrinter
Packing sizeInside415×285×430mm    Outside475×315×485mm
G . weight11kg for IB-N, 10kg for IB






IB-AI Series
ModelIB314AIIB414AIIB514AIIB614AIIB1104AI
Capacity310g410g510g610g1100g
Readability0.1mg
Min weighing0.0004g
Stable Time≤4s
DisplayLCDwhite back light with black font
Pan sizeΦ80mm
Operation temp5-35
Repeat ability≤220g: 0.1mg
220g
-310g: 0.3mg
310g-610g:0.35mg
Linearity±0.0005g
Draft shield size162mm×171mm×225mm
CalibrationInternal calibration
interfaceRS232C(standard), RS485/Printer(optional)
Dimension345×215×345mm
N . weight7kg


BROCHURE

Electronic balance

File Type:.pdf File Size:2.59 MB
