BOD Meter

INO-BOD601L
INO-BOD601L

BOD Meter

INNOVA BOD (Biochemical oxygen demand) Meter used the manometric method or mercury-free pressure difference method, and the data is accurate and reliable. It is widely used for water testing.


FEATURES

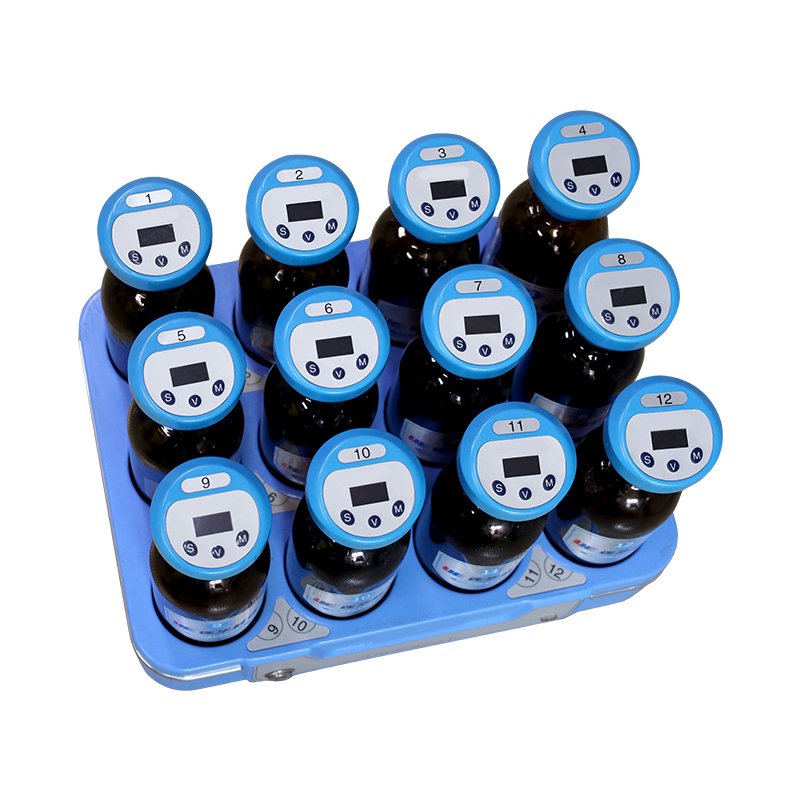

INO-BOD1201 Main Features:



  • The method is safe and reliable: the mercury-free manometric method is adopted, no mercury pollution, and the data is accurate and reliable.

  • The measurement is independent and flexible: the test individual is independent, and the start time of a single sample can be determined at any time.

  • Color LCD screen: each test cap has a color LCD screen, which independently displays the test time, measurement results, sampling amount, etc.

  • Control system: The microprocessor control system is used to automatically complete the measurement process without special care.

  • Wide range and optional: BOD value of (0~4000) mg/L can be determined without dilution;

  • Concentration direct reading: 1-12 samples can be measured without conversion, and the BOD concentration value can be directly displayed.

  • The mobility of the instrument is enhanced: each test cap has a built-in battery, and short-term power-off has no effect on the test, reducing the dependence on electric energy;

  • Large batch size: up to 12 samples can be measured at one time.

  • Easy to operate: only need a simple button to complete the setting, and the water sample can be bottled according to the volume set by the range to complete the test.

  • Automatic data recording: you can view the current experimental data at any time, as well as the five-day biochemical oxygen demand historical data.

  • Complete experimental accessories: equipped with all the reagents and accessories required for the experiment, which is convenient for accurate and fast sampling.

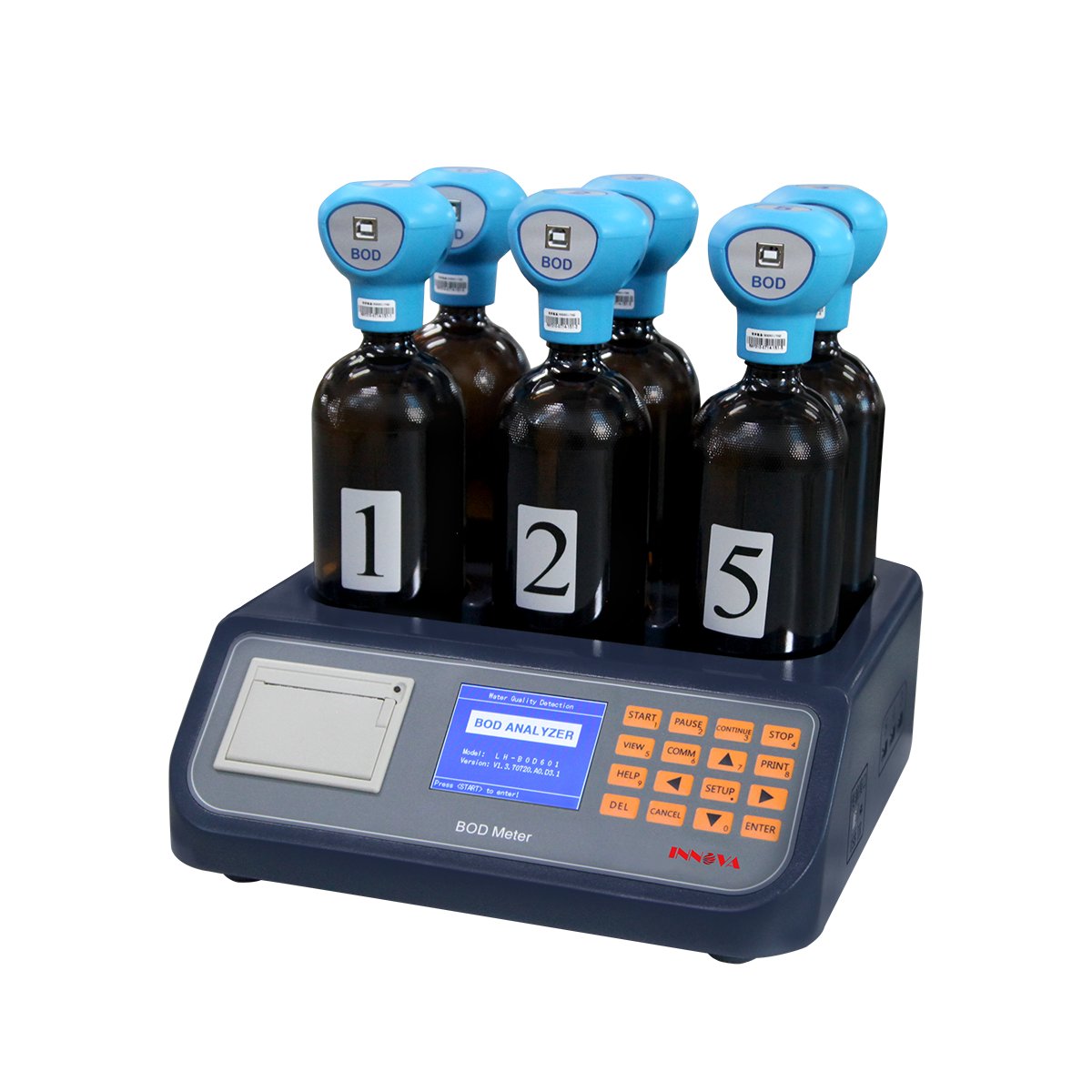

INO-BOD601L Main Features:



  •  At the same time can be measured in a sample of 6.

  •  Automatic daily print data.

  •  Color liquid crystal display screen, the sample values with different colors, intuitive and clear.

  •  Has a plurality of stirring modes (batch, continuous), prolonging the service life of the instrument.

  •  The culture period can be adjusted according to the demand and can choose 1-7 days.

  •  To view the test process and the test data easily.

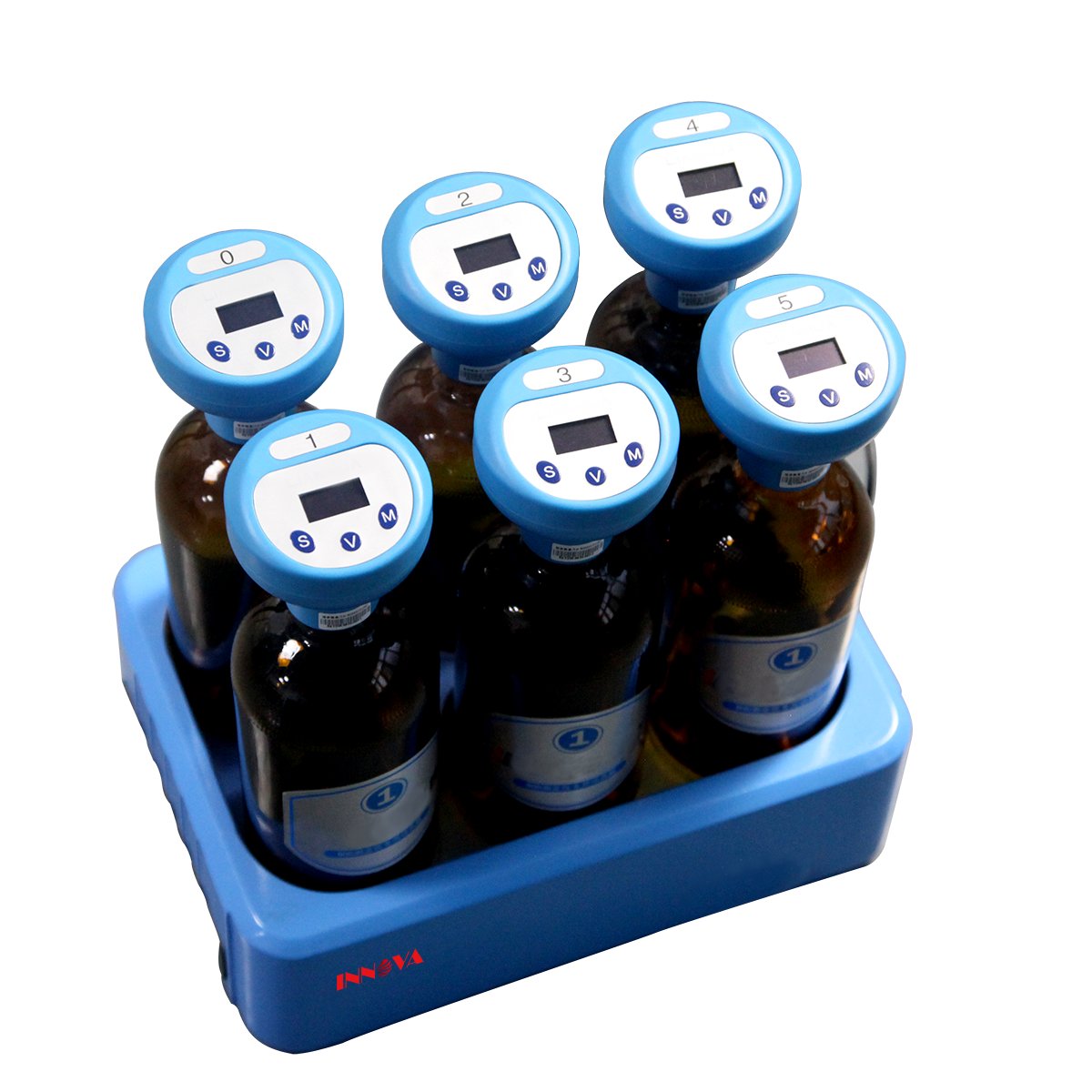

INO-BOD601SL Main Features:



  • 1-6 samples can be measured without conversion and direct display of BOD value.

  • Each test cap has a color LCD display, and the test time, test result, sampling amount, etc. are displayed independently.

  • The range of the range is wide and can be selected. The BOD value of 0-4000mg/L can be tested without dilution.

  • The tested individual is independent and can determine the start time of a single sample at any time.

  • The current experimental data and five-day biochemical oxygen demand history data can be checked at any time.

  • Easy operation, only needs a simple button to complete the setting, in accordance with the volume set in the range of water sample bottle, can complete the test.


SPECIFICATIONS

ModelINO-BOD1201
ItemBiochemical oxygen demand
Range0~4000mg/L
Accuracy≤±5%
Minimum value2mg/L
Volume580mL
Repeatability≤±5%
Samples12 samples once
Period5 and 7 optional
Test temperature20±1
Data storage5 and 7days
Dimension390×294×95 mm
Weight6.5Kg
Environment humidity≤85%RH (no condensation)
SupplyAC 100-240V ±10% / 50-60Hz
Power60W


ModelINO-BOD601L
ItemBiochemical oxygen demand
Measurement range0-4000mg/L
Measuring error±5%
Cycle length1-7days
Measure amount6
Culture bottle volume580ml
Data storage5 years
CommunicationUSB transmission, infrared transmission (optional)
Culture temperature20±1
Working power110-230V  50-60HZ
Rated power24W


ModelINO-BOD601SL
ItemBiochemical oxygen demand
Measurement range0-4000mg/L
Resolution2mg/L
Measurement time5, 7 days optional
Measure amount6
Culture bottle volume580ml
Data storage5 days
Culture temperature20±1
Working powerAV220V±10%/50-60Hz
Rated power20W
