DO Meter

IT-712
IT-712

DO Meter

INNOVA dissolved oxygen meter includes benchtop, tablet, and portable types.

FEATURES

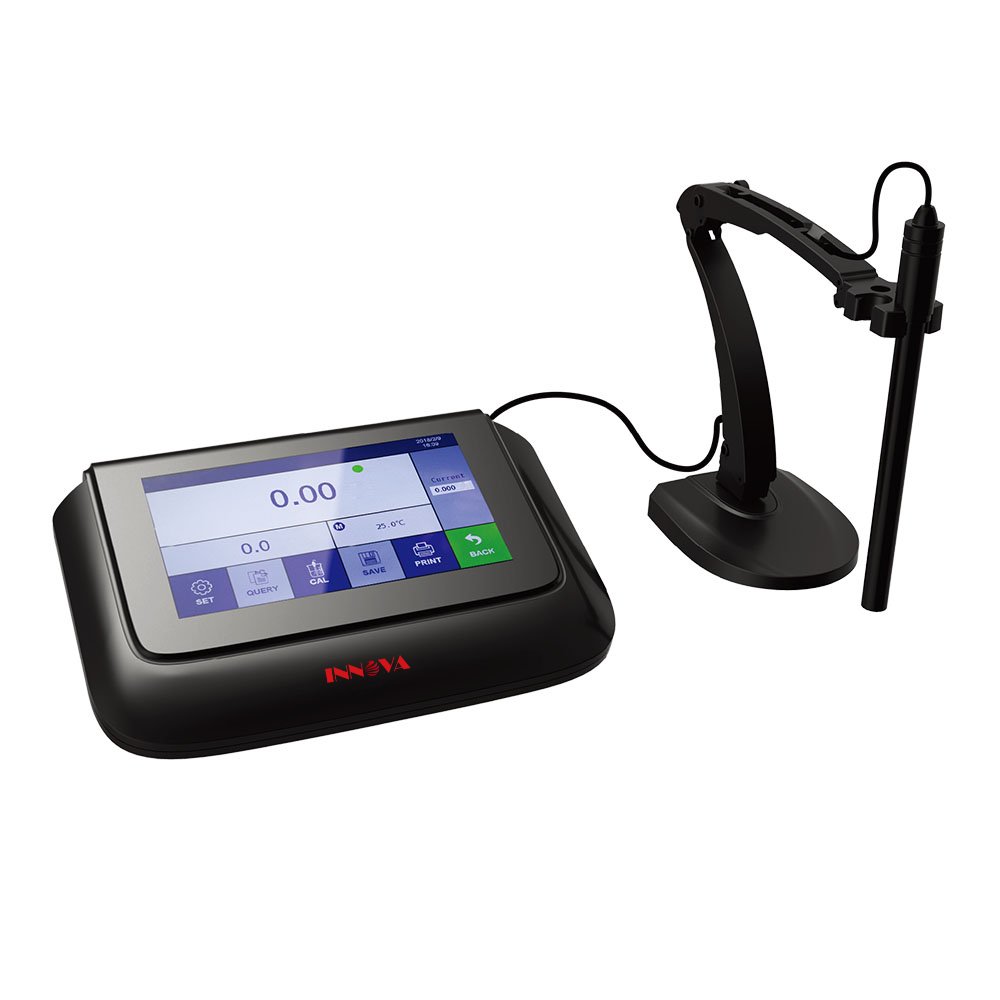

IT-712 Benchtop DO Meter  Main Features:



● 7-inch color capacitive screen with high resolution (1024*600) and sensitivity, which can show more parameters, be more intuitive and be simpler to read data.
● Auto calibration, auto temperature compensation, data storage, USB data export, clock, wireless printing, function setup, smart self-diagnosis, and other intelligent functions.
● English and Chinese operating systems, humanized design with adjustable screen brightness.
● Built-in big memory can store 300 sets of test data which can be saved and transferred to a USB flash drive and opened with Excel, very easy and convenient for editing.
● DO mode has functions of ATC, auto salinity compensation, and auto pressure compensation.
● With standard Bluetooth block and support wireless Bluetooth printing to make operations much easier for users. Optional PC software and cell phone APP.
● New structure polarographic DO electrode can measure temperature, salinity, and dissolved oxygen simultaneously, equipped with special DO electrode calibration sleeve, only need 3~5 minutes for polarization.
● Combined diaphragm cap makes it extremely convenient to replace the sensitive membrane just by screwing the new cap to the electrode.
● IP54 dustproof and waterproof.
● Optional real time data transmission to Android cell phone via wireless Bluetooth.
● Bench DO meter is polarographic instrument and suggested to be used with our magnetic stirrer.

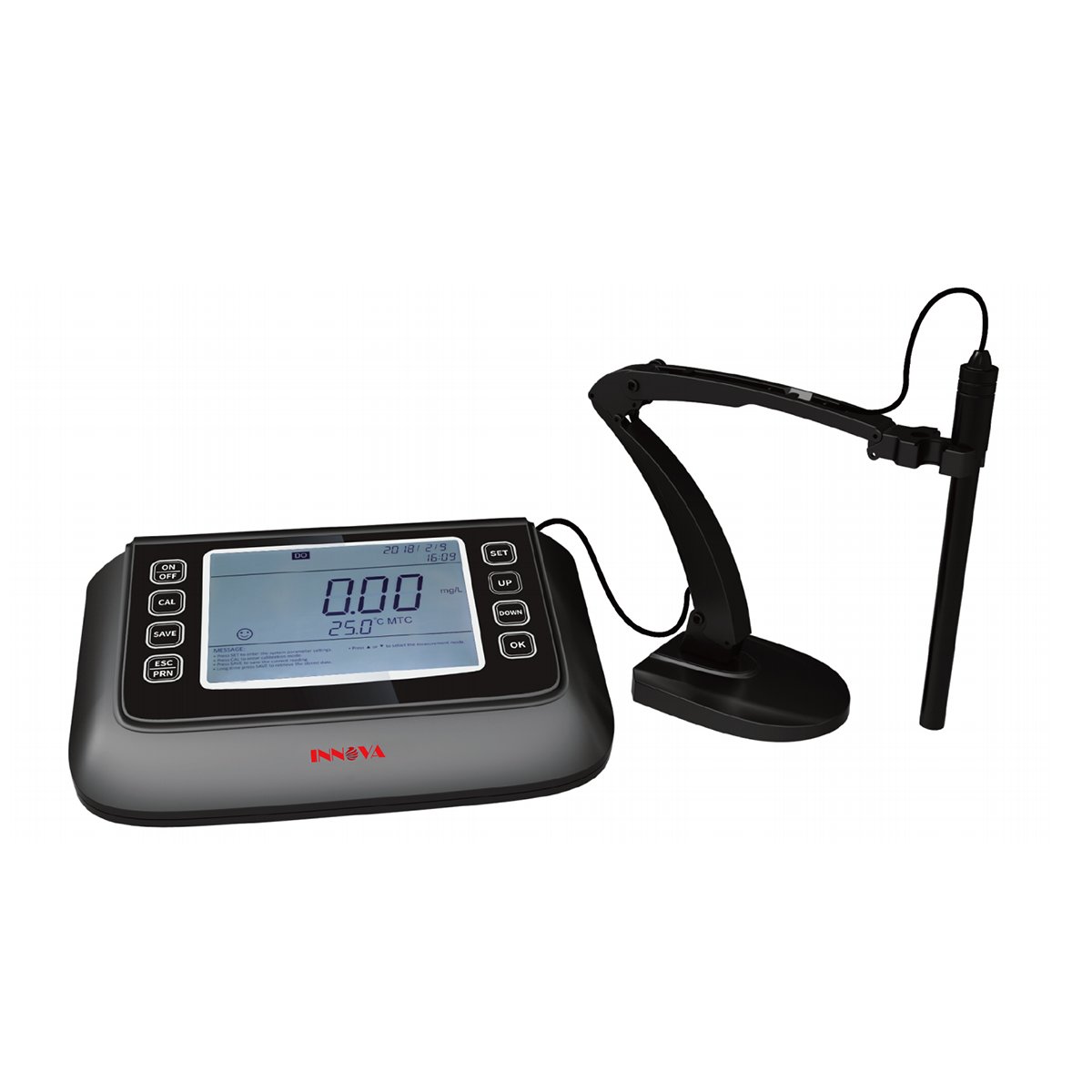

IS-612 Benchtop DO Meter  Main Features

● 6.5 inch LCD screen which is intuitive and can show more parameters. Humanized design of operating interface makes operations simpler.
● Omron long lasting and light touch panel can be used more than 100,000 times.
● Auto calibration, auto temperature compensation, data storage, USB data export, clock, wireless printing, function setup, smart self-diagnosis and other intelligent functions.
● Built-in big memory can store 150 sets of test data which can be saved and transferred to USB flash drive and opened with Excel, very easy and convenient for edit.
● DO mode has functions of ATC, auto salinity compensation and auto pressure compensation.
● New structure polarographic DO electrode can measure temperature, salinity and dissolved oxygen simultaneously, equipped with special DO electrode calibration sleeve, only need 3~5 minutes for polarization.
● Combined diaphragm cap makes it extremely convenient to replace the sensitive membrane just by screwing the new cap to the electrode.
● Optional Bluetooth block and support wireless Bluetooth printing to make operations much easier for users. Optional data transmission to cell phone via wireless Bluetooth.
● IP54 dustproof and waterproof housing.

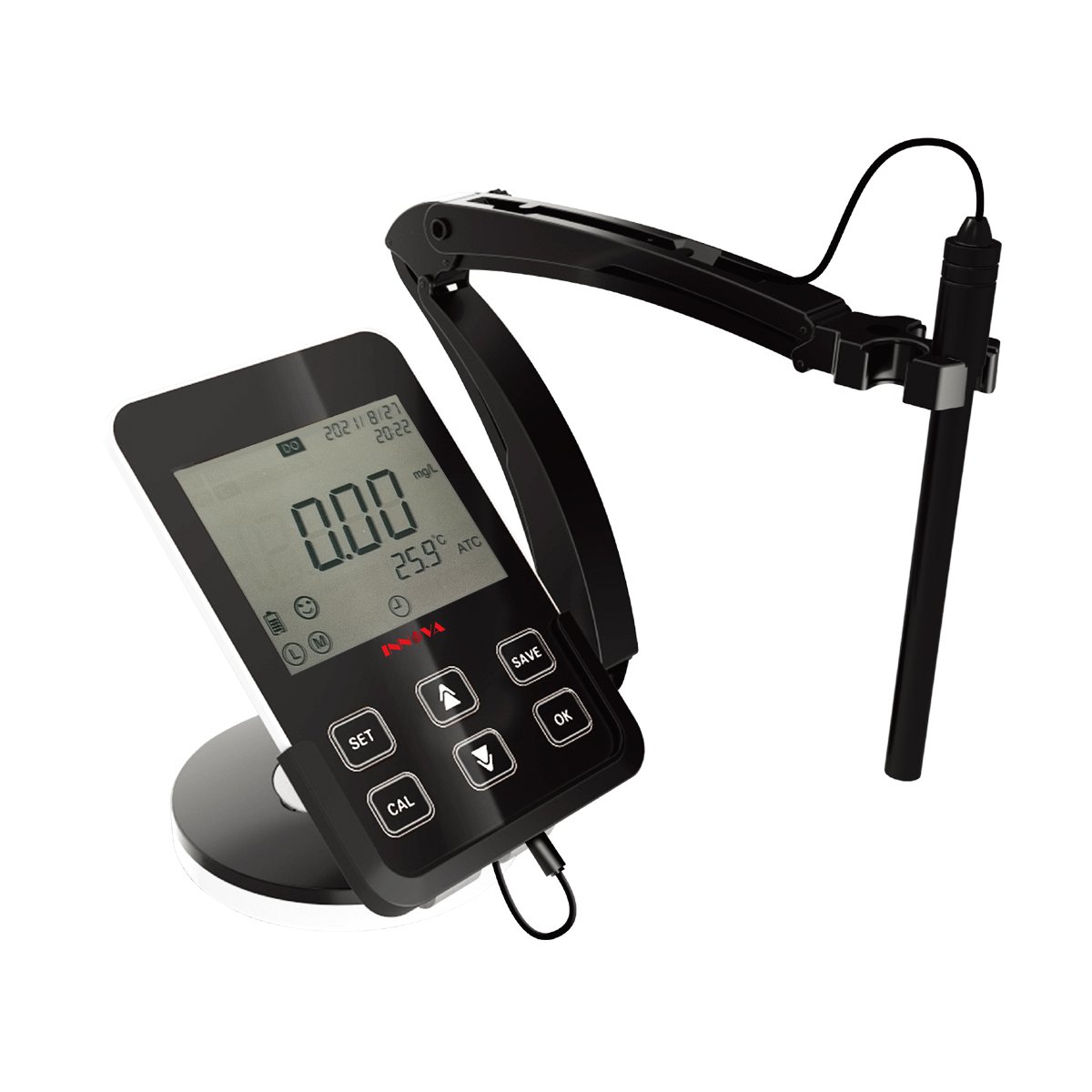

IL-512 Tablet DO Meter Main Features

● 5 inch LCD screen with wide 150° viewing angle, beautiful and compact design.
● Compact bench cradle with rotary electrode holder to save space in laboratory.
● Small size and portable make it easy to carry and remove in laboratory and outdoors.
● Extendibility: different electrodes can be installed to test pH, conductivity and dissolved oxygen.
● Auto recognition of different electrodes after electrode is connected.
● 3.5 mm jack input for electrodes makes it very easy for electrode connection.
● Two USB and one SD card interfaces for power and data transfer.
● Can store 300 pieces of data including readings, date and time.
● Rechargeable and long lasting battery. Auto shut off if there is no operation in ten minutes.

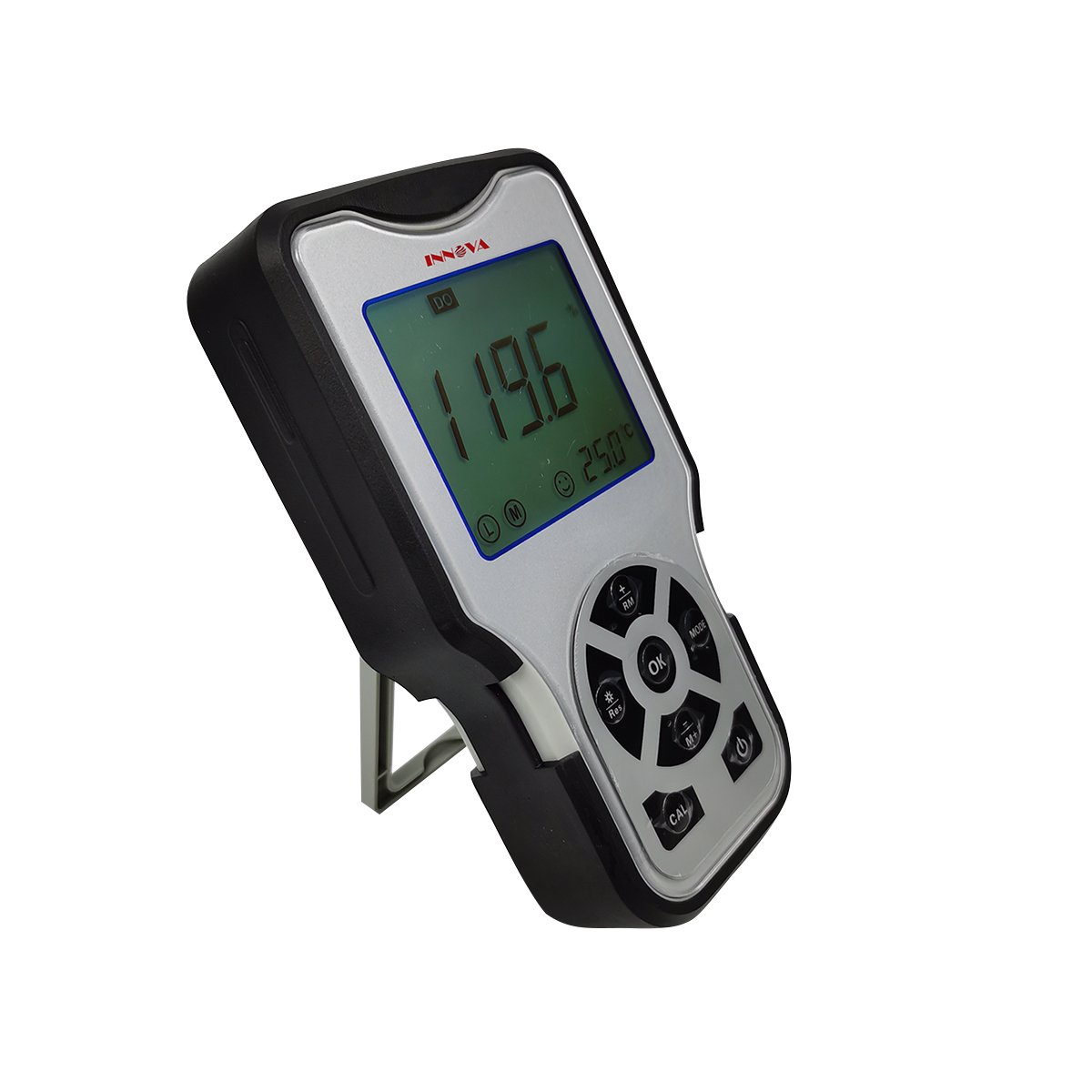

IP-512 Portable DO Meter   Main Features

● Large LCD screen with controllable white backlight.
● Humanized designs like rack and skid proof shell make it more convenient for users.
● DO mode has functions of ATC, auto salinity compensation and auto pressure compensation.
● New structure polarographic DO electrode can measure temperature, salinity and dissolved oxygen simultaneously, equipped with special DO electrode calibration sleeve, only need 3~5 minutes for polarization.
● Built-in microprocessor chip with functions of auto calibration, auto temperature compensation, data storage, function setup, self-diagnosis, auto power off, low voltage display.
● Combined diaphragm cap makes it extremely convenient to replace the sensitive membrane just by screwing the new cap to the electrode.
● IP57 waterproof housing.


SPECIFICATIONS

ModelIT-712
Display7-inch capacitive touch screen
ParametersConcentration, saturation, temperature
DO range0.00 ... 20 mg/L(ppm)
DO resolution0.01/0.1
DO accuracy±0.3%  ±0.4mg/L
DO saturation0.0 ...200%
Saturation resolution0.10%
Saturation accuracy±2.0%FS
Temperature measuring range(-10~110)℃
Temperature resolution0.1℃
Temperature accuracy±0.1℃
Temperature compensation(0~100)℃(automatic)
Salinity compensation(0.0~50.0)g/L
Air pressure compensation(80~105)kPa(automatic)
Air pressure resolution1
Air pressure accuracy±2%
Stability(±0.07mg/L)/1h
Response time≤30s (25℃, 90% response)
Data storage300 sets, USB for huge storage
Communication interfacesUSB, Bluetooth
Working conditionsTemperature:5-40℃  Humidity:5-85%
Power12V1A(with power adapter)
Dimensions & Weight240×170×70mm/600g


ModelIS-612
Display6.5 inch LCD screen
ParametersConcentration, saturation, temperature
DO range0.00 ... 20 mg/L(ppm)
DO resolution0.01/0.1
DO accuracy±0.3%
DO saturation0.0 ...200%
Saturation resolution0.1%
Saturation accuracy±2.0%FS
Temperature measuring range(0~100)℃
Temperature resolution0.1℃
Temperature accuracy±0.1℃
Temperature compensation(0~100)℃(automatic)
Salinity compensation(0.0~50.0)g/L
Air pressure compensation(80~105)kPa(automatic)
Air pressure resolution1
Air pressure accuracy±2%
Stability(±0.07mg/L)/1h
Response time≤30s (25℃, 90% response)
Data storage150 sets, external USB storage
Communication interfacesUSB, Bluetooth
Working conditionsTemperature:5-40℃  Humidity:5-85%
Power12V/1A (with standard AC adapter)
Dimensions & Weight240×170×70mm/600g


ModelIL-512
Display5 inch LCD screen
ParametersConcentration, saturation, temperature
DO range0.00 ... 20 mg/L(ppm)
DO resolution0.01/0.1
DO accuracy±0.3%  ±0.4mg/L
DO saturation0.0 ...200%
Saturation resolution0.1%
Saturation accuracy±2.0%FS
Temperature measuring range(0~100)℃
Temperature resolution0.1℃
Temperature accuracy5~ 60℃: ±0.5℃Others: ±1.0℃
Temperature compensation(0~100)℃(automatic)
Salinity compensation(0.0~50.0)g/L
Air pressure compensation(80~105)kPa(automatic)
Air pressure resolution1
Air pressure accuracy±2%
Stability(±0.07mg/L)/1h
Response time≤30s (25℃, 90% response)
Data storage300 sets, external USB storage
Communication interfacesUSB
Working conditionsTemperature:5-40℃  Humidity:5-85%
PowerDC 5V/1A
Dimensions & Weight190×130×10mm/300g


ModelIP-512
DisplayLarge LCD screen with controllable white backlight
DO range0 ... 20.00 mg/L(ppm)
DO resolution0.1/0.01 mg/L(ppm), 1/0.1 %
DO accuracy±0.40mg/L
DO saturation0.0 ...200%
Response time≤30s (25℃, 90% response)
Residual current≤0.1 mg/L
Temperature compensation(0~100)℃(automatic)
Salinity compensation(0~45) ppt (automatic)
Air pressure compensation(66~200)kPa(manual)
Automatic calibrationAir saturated by water, water-saturated by air
Electrode typePolarographic
Data storage150 groups
Storage contentsSeries number, measuring value, measuring unit and temperature
PowerTwo AA batteries (1.5V)
Dimensions & Weight160×90×30mm/360g (instrument)
480×300×60mm/1kg (with packing)
Working conditionsTemperature:5-35℃  Humidity: ≤85%
IP gradeIP57
