Gel doc system

INNOVA Gel doc systems are easy-to-use systems for your DNA and protein gel documentation needs.

Application: qualitative analysis of the separation and purification results of proteins, nucleic acids, peptides, amino acids, polyamino acids and other biomolecules; determination of molecular weight of biomolecules; for quantitative analysis of biomolecules.

All INNOVA Imagers adopt sensitive cameras in the world-first class, which allow the imaging systems to capture utter weak signals of the bands.

Inquire Now

Last product Next product

FEATURES
SPECIFICATIONS
ACCESSORIES
BROCHURE

FEATURES

GIPad-Mini 630（+）

· Smart, compact and saving the space

· Sensitive digital Camera with high resolution

· Blue LED transmission as standard

· Removable industrial computer instead of embedded PAD

· Optional fluorescent module

· Intuitive Software for unlimited users

Standard application: DNA/RNA and protein gels detection

Optional application: Fluorescence detection

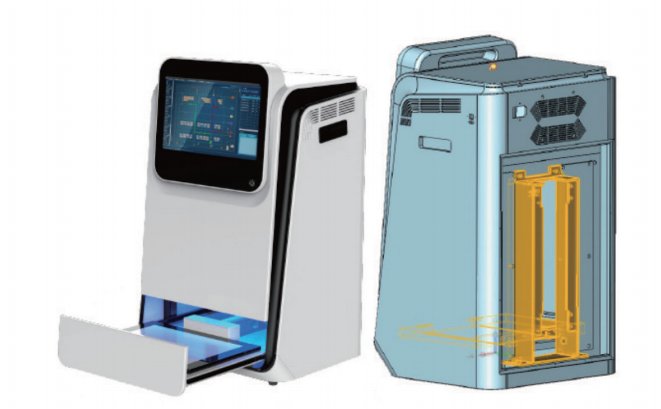

Electronic lifting platfrom and accurate auto focus：

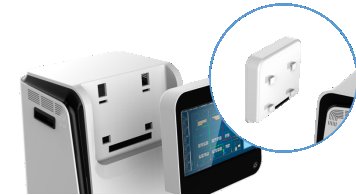

Removable industrial computer

All INNOVA’s Imagers adopt sensitive cameras in the world-first class, which allow the imaging systems to capture utter weak signals of the bands.

GI 500/GI 2000

The INNOVA Classic Gel doc systems are easy-to-use systems for your DNA and protein gel documentation needs.

· Sensitive digital Camera

· The model GI 2000 provides utter high resolution up to 20 Megapixels

· UV Transmission as standard, Blue LED transmission as optional

· Intuitive Software for unlimited users.

SPECIFICATIONS

Model		GIPad-Mini 630（+）	GI 500	GI 2000
Application	Gel Doc Application	✅	✅	✅
	Protein gel；SDS Pages	✅	✅	✅
	Fluorescence Imaging, Fluorescent Western Blotting	✅	Not applied	Not applied
	Chemilluminescence Imaging, ECL Western Blotting	Not applied
Features		Super Sensitivity，Super fast Data transmission	High Sensitivity	High Sensitivity and ultra High resolution
		Small, Smart, Compact and saving the space	Classical design
		Blue LED Transmission for DNA/RNA detection	UV Transmission as standard, Blue LED Transmission as optional
		Optional removable Industrial PC	Connection to PC
Standard Parameter	Resolution	6.3 Megapixels，3072×2048	5 Megapixels, 2592*1944	20 Megapixels，4800*4440
	Quantum efficiency	97%	77%	82%
	Pixel density	16bit(65536 Grey scales)	16bit(65536 Grey scales)
	Lens	F1.2 motorized lens
	DNA/RNA detection	DNA//RNA sample tray:17x13cm ，Blue LED Transmission	DNA//RNA sample tray:21x26cm ，UV Transmission
	Protein gel；SDS Pages	White LED transmission:17x13cm	White LED Transmission for Protein Gels，19x26cm
	Software	Capture and Analysis Software for unlimited number of users

ACCESSORIES

Optional Accessories		Epi-UV, RGB and fluorescent detection	Blue LED transmission for SYBR Green, SYBR Safe, Gel Green etc.
		Removable industrial computer, 10.1 Inch Touch Screen, Intel processor	Connection to external PC
