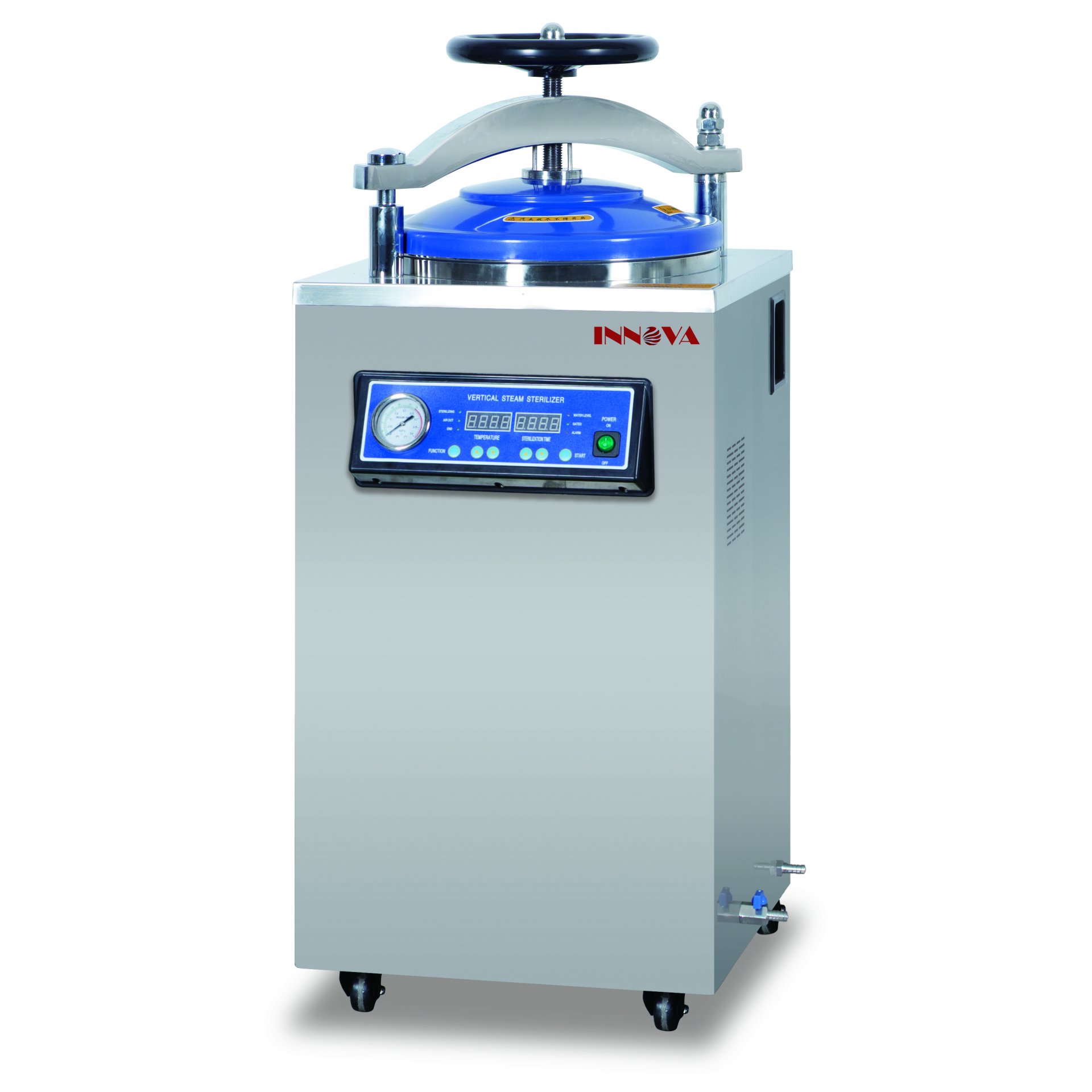

Handwheel Translation Vertical Steam Sterilizer

INOL-50B-EN
INOL-50B-EN

Handwheel Translation Vertical Steam Sterilizer

Handwheel translation sterilizer includes INOL-X,INOL-M,INOL-G and INOL-B series. Each series covers all the requirements of the sterilization process.They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Inquire Now

FEATURES

Description:

Handwheel translation sterilizer includes INOL-X,INOL-M,INOL-G and INOL-B series. Each series covers all the requirements of the sterilization process.They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.



Features:

  • Hand wheel translation and quick opening structure

  • High-quality stainless steel material

  • Microcomputer automatic control, arbitrary setting sterilization parameters.

  • Safety interlocking device

  • Digital display and Touch buttons

  • Standard test interface

  • Self-expanding seal

  • With automatic protection function: over temperature protection; overpressure self-discharge protection; low water level protection; anti-dry burning.

  • With stainless steel bucket or basket

  • Buzzer reminder after sterilization, automatic stop.

  • Automatic discharge of cold air, and automatic steam exhaust after sterilization.

  • INOL-X, INOL-M, and INOL-G series sterilizers have drying functions.

  • INOL-M series uses three pulsating vacuums for sterilization, with a liquid crystal display and touch screen. External evaporator.

  • INOL-M, INOL-G, and INOL-B series can be equipped with external printers, while the INOL-M series contains built-in printers.


SPECIFICATIONS

Technical parameter:

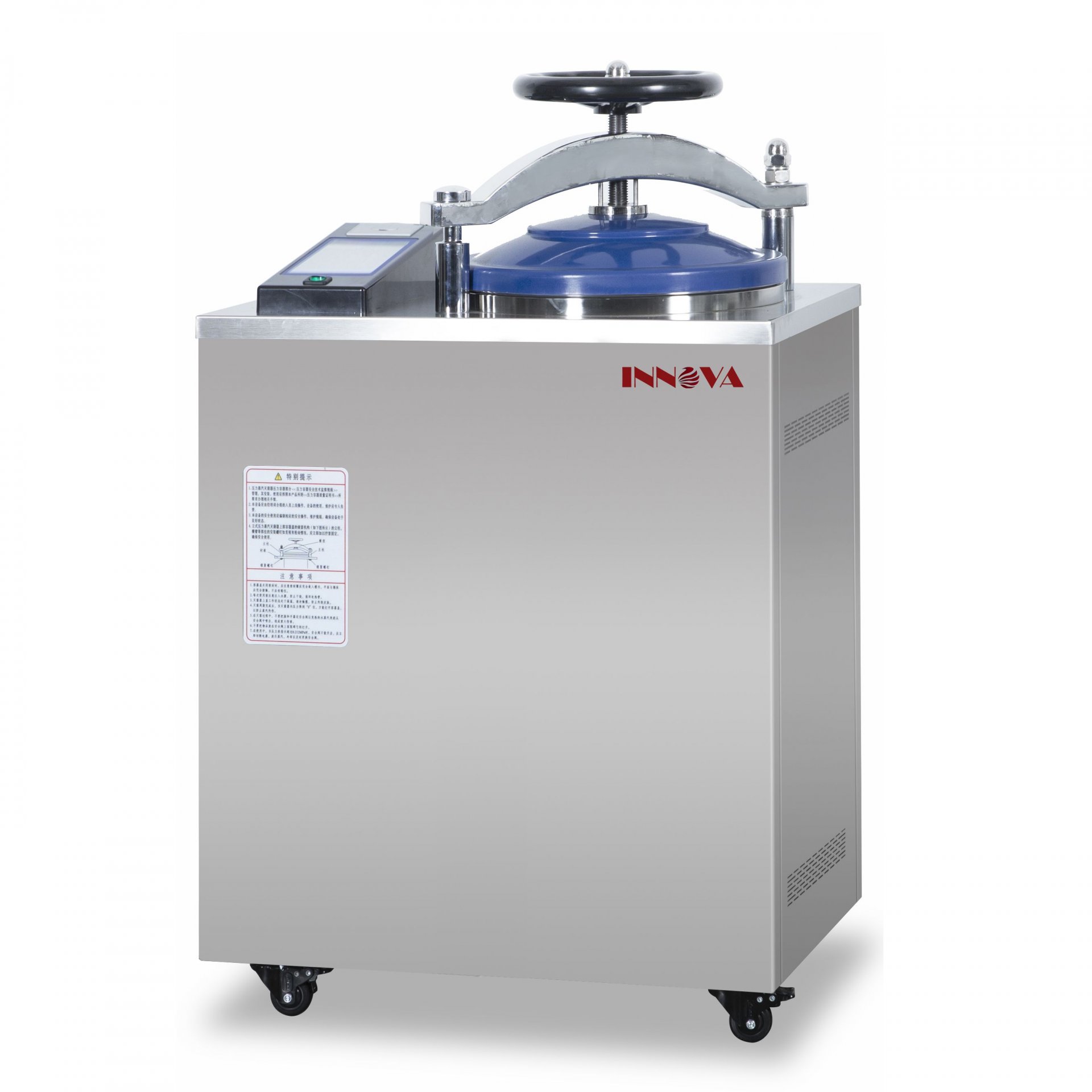

                                     INOL -M Touch screen display (3 times pre-vacuum)
ModleINOL-35MINOL-50MINOL-75MINOL-100M
Volume35L50L75L100L
Power3.5kW3.5kW4.5kW4.5kW
VoltageAC 220V、50HZ
Design pressure0.25Mpa
Design temperature139℃
Rated working pressure0.22Mpa
Rated working temperature134℃
Sterilization temperature116℃~134℃
Sterilization time setting range4~120 min
Drying time setting range0~240min
Chamber volumeØ350×400Ø400×505Ø400×655Ø450×650
Bucket dimensionØ330×320Ø380×430Ø380×560Ø420×540
Basket dimension(optional)Ø320×350Ø360×280×1Ø360×280×2Ø410×300×2
Outer dimension698×498×940630×500×1180725×525×1170760×560×1260
Packing size(L× W× H )mm790×610×1130800×600×1230840×610×1310870×650×1380
Gross/net weight130/115KG138/118KG150/124KG159/132KG


                                     INOL -X Multi-function automatic internal cycle drying
ModleINOL-35XINOL-50XINOL-75XINOL-100X
Volume35L50L75L100L
Power3.5kW3.5kW4.5kW4.5kW
VoltageAC 220V、50HZ
Design pressure0.25Mpa
Design temperature139℃
Rated working pressure0.22Mpa
Rated working temperature134℃
Sterilization temperature116℃~134℃
Sterilization time setting range4~120 min
Drying time setting range0~240min
Chamber volumeØ350×400Ø350×525Ø400×655Ø450×650
Bucket dimensionØ330×320Ø330×460Ø380×560Ø420×540
Basket dimension(optional)Ø320×350Ø320×240×2Ø360×280×2Ø410×300×2
Outer dimension698×498×940630×500×1180725×525×1170788×588×1255
Packing size(L× W× H )mm790×610×1130800×600×1230840×610×1310870×650×1380
Gross/net weight125/110KG130/112KG145/114KG156/129KG


                                     INOL -G Multifunctional Automatic With Drying
ModleINOL-35GINOL-50GINOL-75GINOL-100G
Volume35L50L75L100L
Power3.5kW3.5kW4.5kW4.5kW
VoltageAC 220V、50HZ
Design pressure0.25Mpa
Design temperature139℃
Rated working pressure0.22Mpa
Rated working temperature134℃
Sterilization temperature116℃~134℃
Sterilization time setting range4~120 min
Drying time setting range0~240min
Chamber volumeØ350×400Ø350×525Ø400×655Ø450×650
Bucket dimensionØ330×320Ø330×460Ø380×560Ø420×540
Basket dimension(optional)Ø320×350Ø320×240×2Ø360×280×2Ø410×300×2
Outer dimension480×480×1000480×480×1120525×525×1190550×550×1250
Packing size(L× W× H )mm580×630×1130580×630×1230630×680×1290690×650×1410
Gross/net weight79/58KG106/80KG120/90KG133/106KG


                                     INOL -B Digital Displayed Automatic Type
ModleINOL-35BINOL-50BINOL-75BINOL-100B
Volume35L50L75L100L
Power3.5kW3.5kW4.5kW4.5kW
VoltageAC 220V、50HZ
Design pressure0.25Mpa
Design temperature139℃
Rated working pressure0.22Mpa
Rated working temperature134℃
Sterilization temperature116℃~134℃
Sterilization time setting range4~120 min
Chamber volumeØ350×400Ø350×525Ø400×655Ø450×650
Bucket dimensionØ330×320Ø330×460Ø380×560Ø420×540
Basket dimension(optional)Ø320×350Ø320×240×2Ø360×280×2Ø410×300×2
Outer dimension480×480×1000480×480×1120525×525×1190550×550×1250
Packing size(L× W× H )mm580×630×1130580×630×1230630×680×1290690×650×1410
Gross/net weight79/58KG106/80KG120/90KG133/106KG



BROCHURE

Innova Autoclave&Sterilizer brochure

File Type:.pdf File Size:1.92 MB
