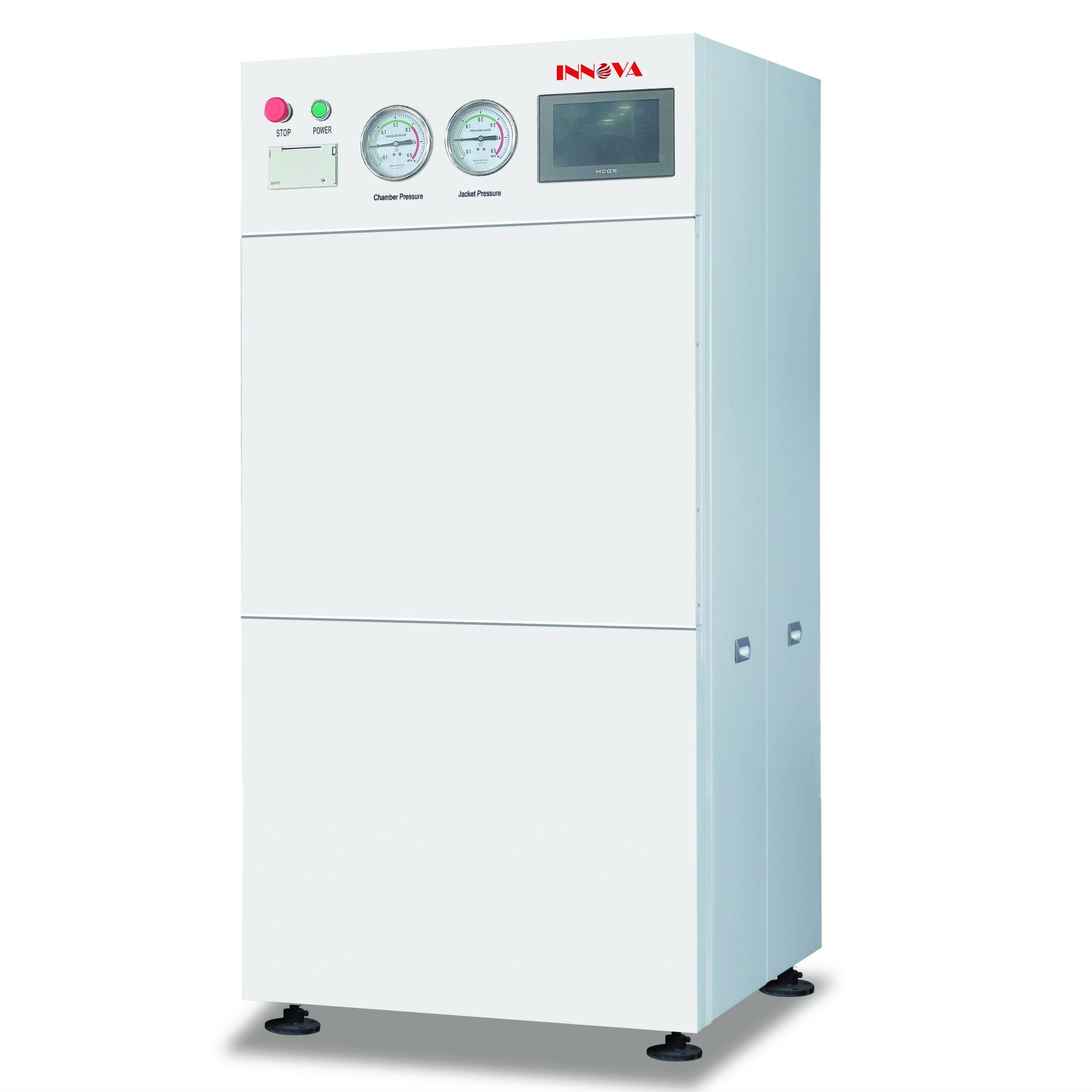

INOY Series Horizontal Steam Sterilizer

INOY-150DM-EN
INOY-150DM-EN

INOY Series Horizontal Steam Sterilizer

Horizontal Steam Sterilizer is strictly designed and manufactured in accord with GMP technical Standard. It has passed ISO9001 quality management qualification standard and ISO13485Certificate of Quality Management System for Medical Devices.The relevant data can be saved and printed automatically. This autoclave is suitable for hospital, scientific research institute and other units to sterilize asepsis clothes, tools, ulture medium and so on.

Inquire Now

FEATURES

Description:

Horizontal Steam Sterilizer is strictly designed and manufactured in accord with GMP technical Standard. It has passed ISO9001 quality management qualification standard and ISO13485Certificate of Quality Management System for Medical Devices.The relevant data can be saved and printed automatically.

This autoclave is suitable for hospital, scientific research institute and other units to sterilize asepsis clothes, tools, ulture medium and so on.

Features:

  • Horizontal square inner chamber + jacket structure,safety, heat preservation, and drying function;

  • Disc type embedded gear + Electric lock door structure,safety and reliable;

  • The door seal is pneumatic, single or double door(double door interlock)

  • Equipped with standard equipment verification interface

  • Pipeline system for the optimal design, SUS304 pipeline, clamp structure, quick assembly

  • Control system: HMI man-machine interface,touch screen+PLC

  • F0 value and temperature time double guarantee sterilization effect, with perfect sterilization records;

  • With program selection, parameter setting, equipment operation, report processing and traceability Functions;

  • Three levels of authority management

  • Multiple safety protection(over-temperature, over-pressure protect)

  • Sterilization process: fabric, equipment, liquid, BD,pressure testing, custom defined multiple procedures



SPECIFICATIONS

Technical parameter (With Pulse Vacuum):

ModleINOY-100D(S)(M)INOY-150D(S)(M)INOY-200D(S)(M)INOY-300D(S)(M)INOY-400D(S)(M)
Volume100L150L200L300L400L
Power(KW)2+122+152+152+182+18
VoltageThree-phase five-wireAC 380V、50HZ
Design pressure-0.1~0.3Mpa
Design temperature144℃
Rated working pressure0.245Mpa
Working temperature105-138℃
Vacuum-0.086Mpa
Temperature Equilibrium<+2.0℃
Water Pressure0.1-0.2Mpa
Compressed air pressure0.4~0.7Mpa
Steam Pressure0.3-0.7Mpa
Cycle time per batchAbout 40-70 minutes
Overall
Dimensions
(L×W×H)mm
1160×650×16801290×690×16801560×690×16801430×850×17601755×850×1760
Chamber Size
(L×W×H)mm
Ø420×750Ø472×880Ø472×1150Ø620×995Ø620×1320
Steam Consumption (KG)≤11≤13≤15≤20≤25
Water
Consumption
(KG)
≤190≤190≤190≤200≤200
Net Weigh Single/Double door
(KG)
280/310370/410400/440480/530540/590


Technical parameter (Without Pulse Vacuum):

ModleINOY-100D(S)(M)INOY-150D(S)(M)INOY-200D(S)(M)INOY-300D(S)(M)INOY-400D(S)(M)
Volume100L150L200L300L400L
Power(KW)2+92+122+122+152+15
VoltageThree-phase five-wireAC 380V、50HZ
Design pressure-0.1~0.3Mpa
Design temperature144℃
Rated working pressure0.245Mpa
Working temperature105-138℃
Vacuum-0.086Mpa
Temperature Equilibrium<+2.0℃
Water Pressure0.1-0.2Mpa
Compressed air pressure0.4~0.7Mpa
Steam Pressure0.3-0.7Mpa
Cycle time per batchAbout 40-70 minutes
Overall
Dimensions
(L×W×H)mm
1160×650×16801290×690×16801560×690×16801430×850×17601755×850×1760
Chamber Size
(L×W×H)mm
Ø420×750Ø472×880Ø472×1150Ø620×995Ø620×1320
Steam Consumption (KG)≤10≤12≤13≤18≤22
Water
Consumption
(KG)
≤30≤30≤30≤40≤40
Net Weigh (KG)250350370450510


BROCHURE

Innova Autoclave&Sterilizer brochure

File Type:.pdf File Size:1.92 MB
