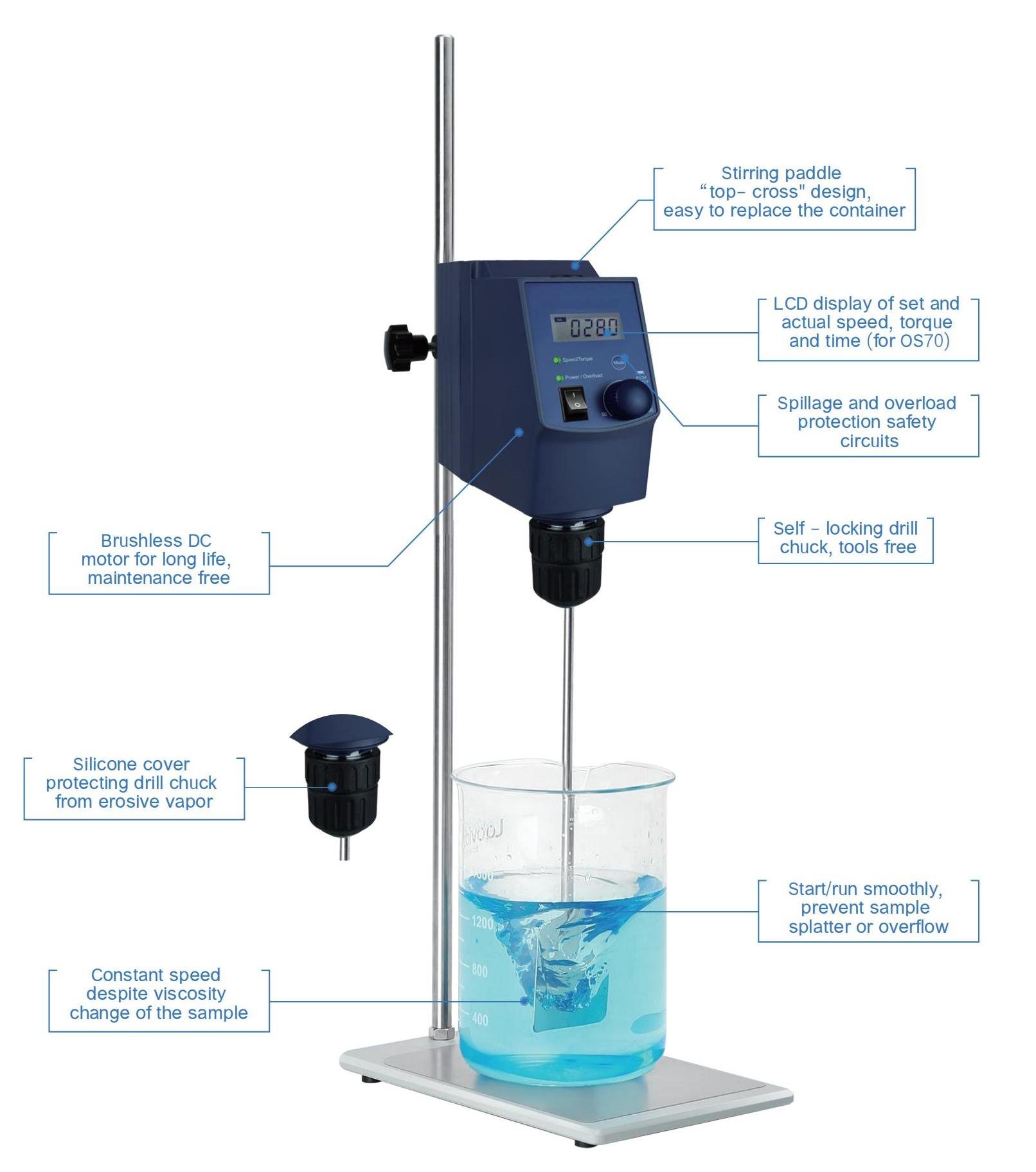

Overhead Stirrer

Overhead Stirrers are competent for most demanding tasks with guaranteed safety and performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis, petrochemical industries, etc.

Inquire Now

Last product Next product

FEATURES
SPECIFICATIONS

FEATURES

SPECIFICATIONS

Speciﬁcations	OS20-Pro	OS40-Pro	OS70-Pro	OS20-S	OS40-S
Max. stirring quantity[H2O]	20L	40L	70L	20L	40L
Speed range	50~2200rpm	50~2200rpm	50~1100rpm	50~2200rpm	50~2200rpm
Speed display accuracy	±3rpm	±3rpm	±10rpm
Time settings range	-	-	0-99h59min
Data interface	RS232	RS232	RS232
Max. torque	40N ·cm	60N ·cm	300N ·cm	40N ·cm	60N ·cm
Viscosity max.	10000mPa ·s	50000mPa ·s	100000mPa ·s	10000mPa ·s	50000mPa ·s
Motor type	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor
Voltage,Frequency	100~240V, 50/60 Hz	100~240V, 50/60 Hz	100~240V, 50/60 Hz	100~240V, 50/60 Hz	100~240V, 50/60 Hz
Speed display	LCD	LCD	LCD	LED	LED
Torque display	LCD	LCD	LCD
Overload protection display	LCD	LCD	LCD	LED	LED
Chuck clamp range diameter	0.5~10mm	0.5~10mm	0.5~10mm	0.5~10mm	0.5~10mm
Motor input/output power	60W/50W	120W/100W	180W/160W	60W/50W	120W/100W
Power	70W	130W	200W	70W	130W
Dimension[WxHxD]	83 x 220 x 186mm	83 x 220 x 186mm	83 x 220 x 186mm	83 x 220 x 186mm	83 x 220 x 186mm
Protection class	IP21	IP21	IP21	IP21	IP21
Permissible ambient temperature and humidity	5~40℃,80%RH	5~40℃,80%RH	5~40℃,80%RH	5~40℃,80%RH	5~40℃,80%RH
Weight	2.8kg	2.8kg	3.2kg	2.8kg	2.8kg
