Recirculating Chiller

DL 30
DL 30

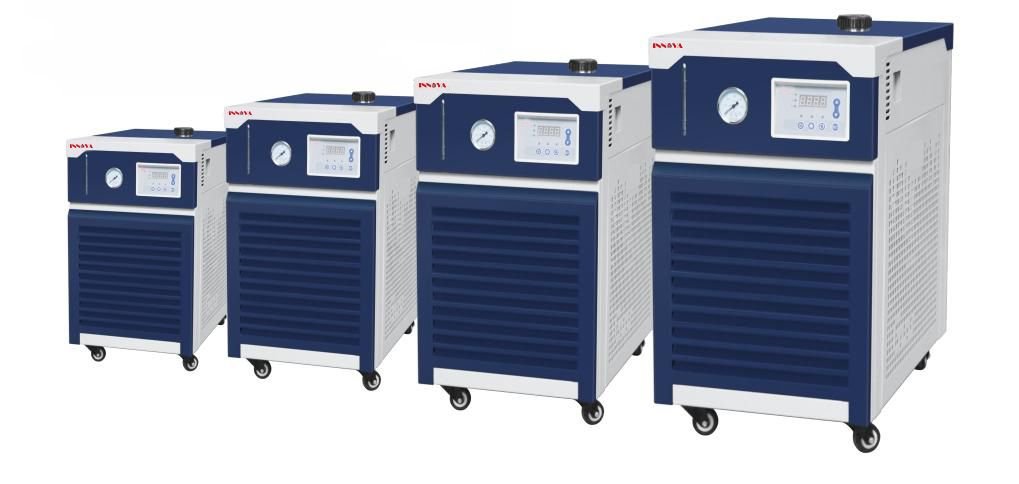

Recirculating Chiller

INNOVA Recirculating Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and research institutes.

FEATURES

Description:

INNOVA Recirculating Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and research institutes.




Features:

● Applications in Chemistry and Biology, like biological fermenter, chemical synthetic vessel etc.

● Equipped with world famous brand compressor, ensure low noise, high reliability, stable performance and long life span.

● Completely closed circulation system prevents bath fluid from evaporation or contamination.

● Built-in filters in circulation hose avoids possible blockage.

● Environmental friendly CFC-free refrigerant meets international standards.

● Compact design with good-looking appearance.

● Designed with liquid level monitor,which make it easier to check the bath fluid left in the tank.

● Pressure of bath fluid can be measured by the pressure gauge which is fixed near the fluid outlet.

● Variable models to meet customer's different requirements.

● Removable side panels for quick and easy cleaning and maintenance.

● Eco-friendly refigerant meets international environmental protection standard; Intelligent control system will prevent compressor from overloading which will extend its service life; closed circulation system reduced evaporation of refrigerant.


SPECIFICATIONS

Technical Data 1:



ModelIDL20-900 (CE)IDL30-300 (CE)IDL30-700 (CE)IDL30-1000 (CE)

IDL30-180

0 (CE)

IDL30-2500

 (CE)

Temperature Range (℃)-20~25℃-30~5℃
Temperature stability (℃)±2℃
Circulating pump flow rate (L/min)20 L/min30L/min
Pressure (bar)0.41
Bath fluid filling volume (L)1010173040
Cooling Capacity
(W)
@0℃165012501750280050006000
@-10℃9508001100180030004000
@-20℃500300700100018002500
@-25℃15030050010001100
RefrigerantR410AR404A
Hose connecting size1/2″3/4″
Dimensions (W×D×H) (mm)435×690×720435×690×720465×690×820495×760×860635×1105×1066650×1055×1070
Net weight (kg)707386108180195
Power Supply1PH  220-240V/50Hz1PH  220-240V/60Hz3PH 380V50Hz



Technical Data 2:

ModelIDL-400
Temperature Range (℃)-15~25℃
Temperature stability (℃)±2℃
Rated power (W)450
**0℃ Cooling capacity (W)400
RefrigerantR134a
Bath fluid filling volume (L)3 L
Circulating pump flow rate (L/min)17
Pressure (bar)0.2
Material of bath fluid tankStainless steel 304
Dimensions (W×D×H) (mm)246×408×550
Net weight (kg)26
Power supply220-240V/50Hz





BROCHURE

Innova Temperature Control System Brochure

File Type:.pdf File Size:6.74 MB
