Touch Screen Vacuum Autoclave(T series)

123
123

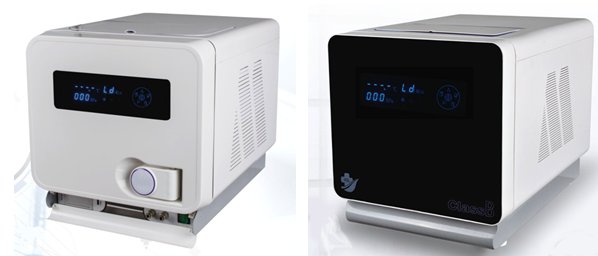

Touch Screen Vacuum Autoclave(T series)

Innova T series vacuum autoclave is equipped with intelligent microprocessor control system with touch screen, easy operation, fast response. Multiple sterilization programs. Password protection.

Inquire Now

FEATURES

Features:

● Tabletop compact design. Widely used in dental clinic, ophthalmology clinic, laboratory and beauty salon etc.

● Housing, support frame made of powder coated corrosion-resistant high density steel, strong and durable with fashion appearance.

● Comply EU standard Class B ,built-in vacuum pump with 3 pulsating vacuum. Vacuum up to -0.9Bar (- 0.09Mpa).Residual humidity0.2, suitable to sterilize wrap, unwrap, solid, porous, hollow device.

● Temperature and pressure range 138°C, 2.1 bar.

● Fully automatic microprocessor control system, easy operation, fast response. Multiple sterilization programs. Password protection.

● Programmable timer.

● LCD touch screen, more user-friendly and practicable for operation.

● Wide-open water tank on top, easy to maintain and clean,automatic feed water for steam generation.

● Metal pipe connecting the heating paths, more reliable and durable.

● Patent steam generator, more efficient to get steam and heat.

● Air-cooled steam exhaust (IA-45 is water-cooled).

● Built-in printer for batch documentation.

● Temperature PT-1000.



Safety

●  With B& D test and vacuum test procedures, to test the penetrability.

●   Double lock system to ensure safety


SPECIFICATIONS

                 T series                                                                          TF series

Model

IA-18T

IA-23T

IA-23TF

IA-29TF

Chamber dimensions

Ø x   depth (mm)

249*355

249*450

249*450

319*623

Chamber volume (L)

Total/working

18

23

23

29

External dimensions

(mm)

475*610*410

475*630*500

470*630*500

540*580*781

Packing dimensions

(mm)

720*545*580

720*545*580

720*545*580

625*650*901

N.W. /G.W.(kg)

63/70

65/72

65/72

72/80

Heating capacity (kw)

2

2

2

2.5

Sterilization cycle time

(mins)

35~60

35~60

35~60

35~60

Water required

Distilled

Distilled

Distilled

Distilled

Printer

Y

Y

Y

Y

USB port

Y

Y

Y

Y


BROCHURE

INNOVA Benchtop Autoclave brochure

File Type:.pdf File Size:2.05 MB
