Conductivity Meter

IL-511
IL-511

Conductivity Meter

INNOVA conductivity meter includes benchtop, tablet, portable, and pocket types.

FEATURES

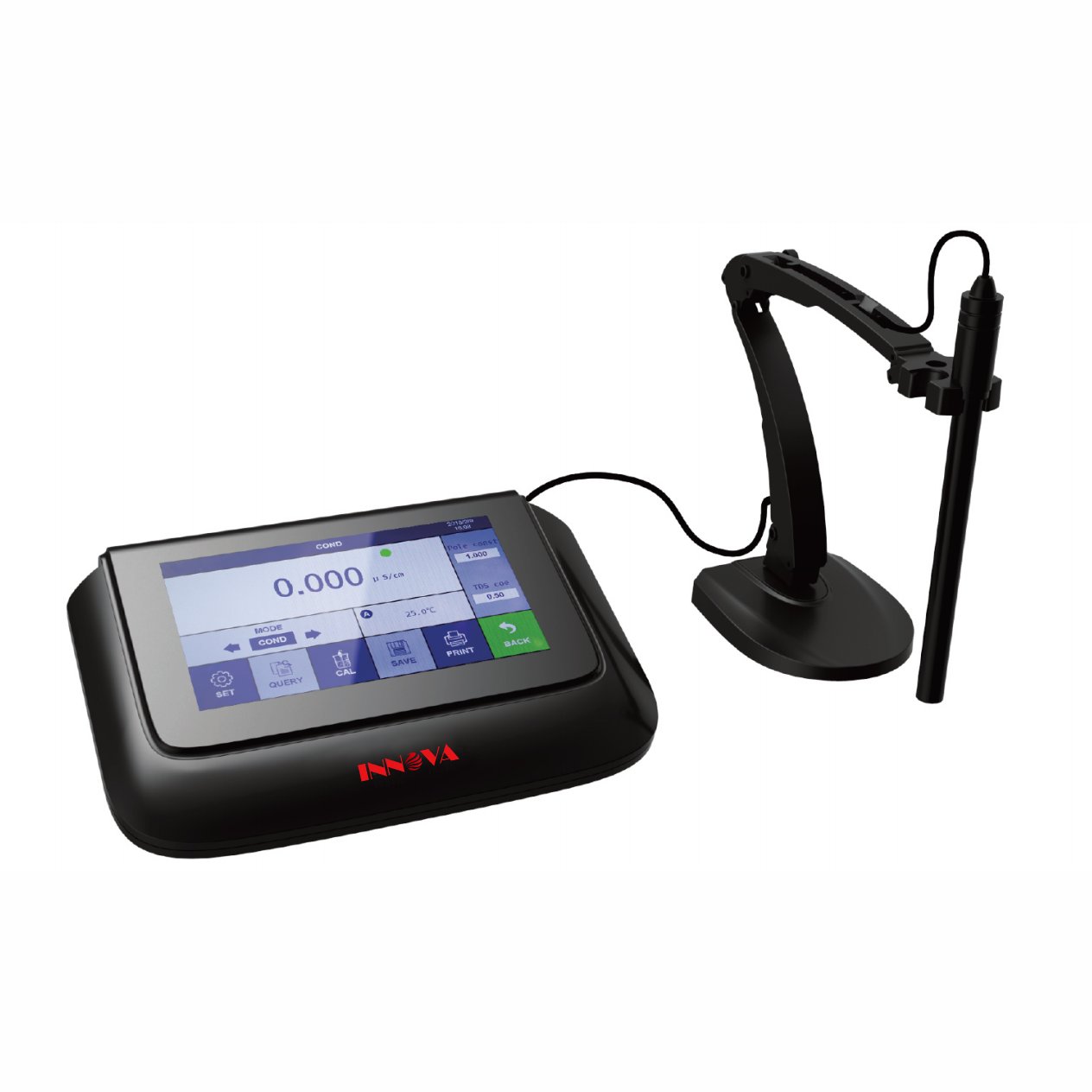

IT-711 Series Benchtop Conductivity Meter  Main Features



● 7-inch color high resolution(1024*600) capacitive touch screen, high sensitivity, complete parameter display, intuitive, easy to use, and simple.
● Automatic calibration, automatic temperature compensation, data storage, USB output, clock display, wireless print, function setting, self-diagnose, etc.
● Built-in bilingual operating system in Chinese and English, humanized operation design, with adjustable screen brightness.
● Built-in mass storage can store 300 sets of measurement data, data can be stored and transferred to USB and opened by Excel, more convenient for customers to edit.
● Automatically recognize 8 kinds of conductivity standard solutions. Users can choose any one from two series of solutions: the USA series and the China series.
● With standard Bluetooth module and support wireless printing to make operations more convenient for users. Optional PC software and cell phone APP.
● Adopt advanced conductivity measurement technology, one point calibration of conductivity electrode can meet the measuring accuracy requirements for test 0.5uS/cm ~ 200mS/cm.
● Able to switch between conductivity, TDS, salinity, and resistivity. The multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
● Automatic temperature compensation conductivity electrode and the measurement result is fast and precise.
● Can intelligently judge the electrode status to ensure that the test result is accurate.
● Dustproof and waterproof meter meets IP54 standards.

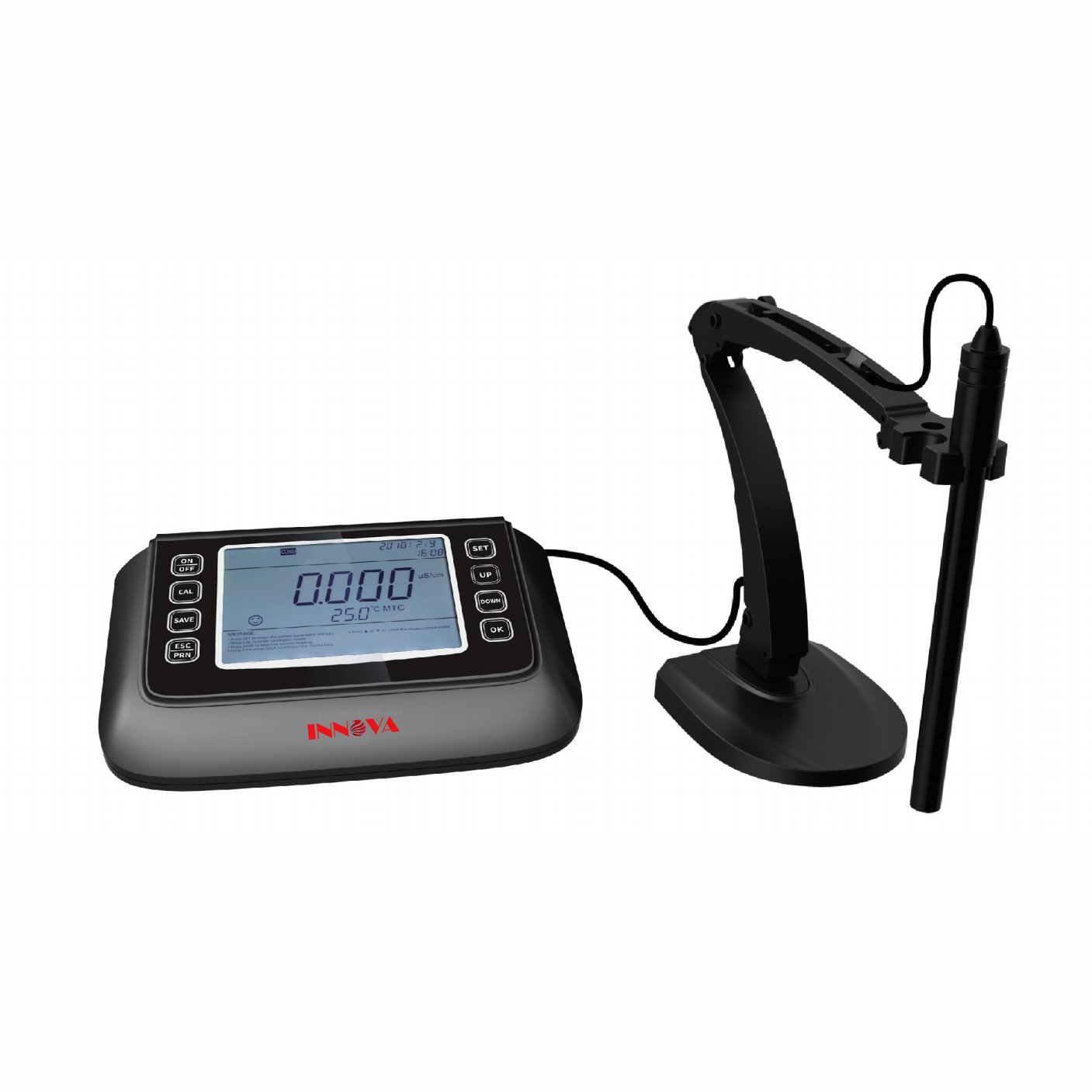

IS-611 Series Benchtop conductivity meter  Main Features:

● 6.5 inch LCD screen which is intuitive and can show more parameters. Humanized design of the operating interface makes operations simpler.
● Omron long lasting and light touch panel can be used more than 100,000 times.
● Auto calibration, auto temperature compensation, data storage, USB data export, clock, wireless printing, function setup, smart self-diagnosis, and other intelligent functions.
● Built-in big memory can store 150 sets of test data which can be saved and transferred to a USB flash drive and opened with Excel, very easy and convenient for edit.
● Auto-recognition of eight kinds of standard conductivity solutions and there are two series of standard solutions for option: USA series and China series.
● Adopt advanced conductivity measurement technology, one point calibration of conductivity electrode can meet the measuring accuracy requirements for test 0.5μS/cm~ 200mS/cm.
● Able to switch between conductivity, TDS, salinity, and resistivity. The multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
● Optional Bluetooth block and support wireless Bluetooth printing to make operations much easier for users. Optional data transmission to a cell phone via wireless Bluetooth.
● IP54 dustproof and waterproof housing.

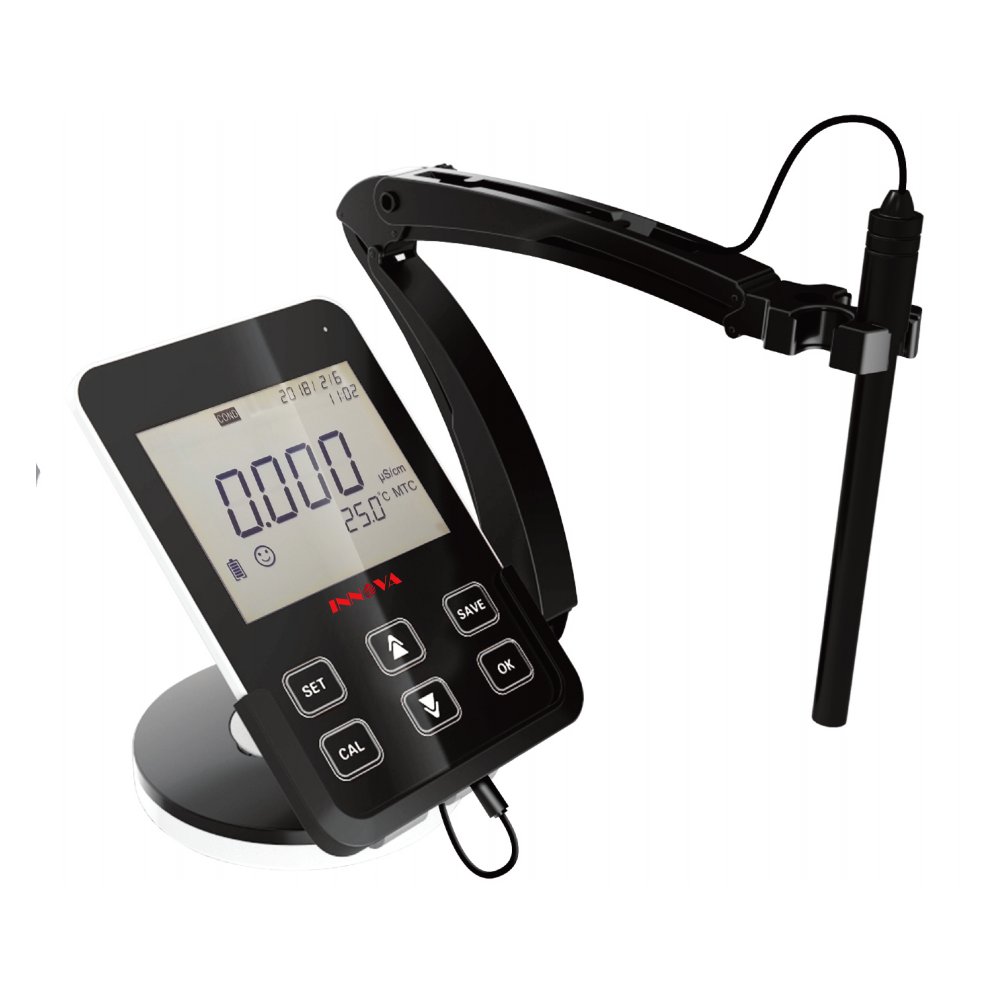

IL-511 Tablet Conductivity Meter  Main Features



● 5-inch LCD screen with a wide 150° viewing angle, beautiful and compact design.
● Compact bench cradle with rotary electrode holder to save space in the laboratory.
● Small size and portability make it easy to carry and remove in the laboratory and outdoors.
● Extendibility: different electrodes can be installed to test pH, conductivity, and dissolved oxygen.
● Auto-recognition of different electrodes after the electrode is connected.
● 3.5 mm jack input for electrodes makes it very easy for electrode connection.
● Two USB and one SD card interface for power and data transfer.
● Can store 300 pieces of data including readings, dates, and time.
● Rechargeable and long-lasting battery. Auto shut off if there is no operation in ten minutes.

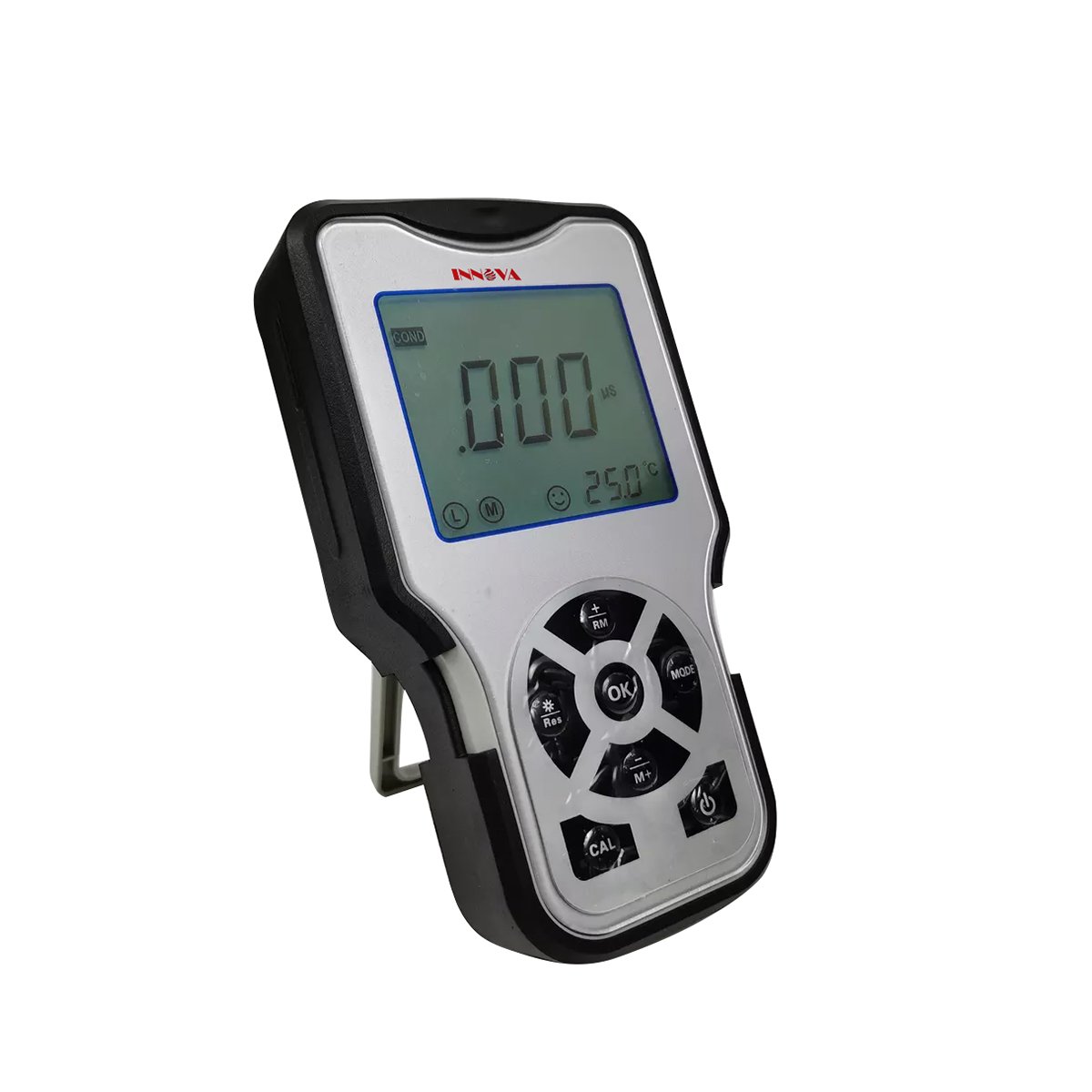

IP-511 Portable Conductivity Meter  Main Features :

● Large LCD screen with controllable white backlight.
● Built-in microprocessor chip with functions of auto calibration, auto temperature compensation, data storage, function setup, self-diagnosis, auto power off, and low voltage display.
● Auto-recognition of 8 standard conductivity solutions and there are two series of standard buffers for option: USA series, and China series.
● Adopt advanced conductivity measurement technology, one point calibration of conductivity electrode can meet the measuring accuracy requirements for test 0.5μS/cm ~ 200mS/cm.
● Able to switch between conductivity, TDS, salinity, and resistivity. The multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
● Conductivity mode has the function of non-linear temperature compensation for high-purity water.
● Humanized designs like rack and skid-proof shells make it more convenient for users.
● Plastic conductivity electrode with automatic temperature compensation to ensure fast and accurate results.

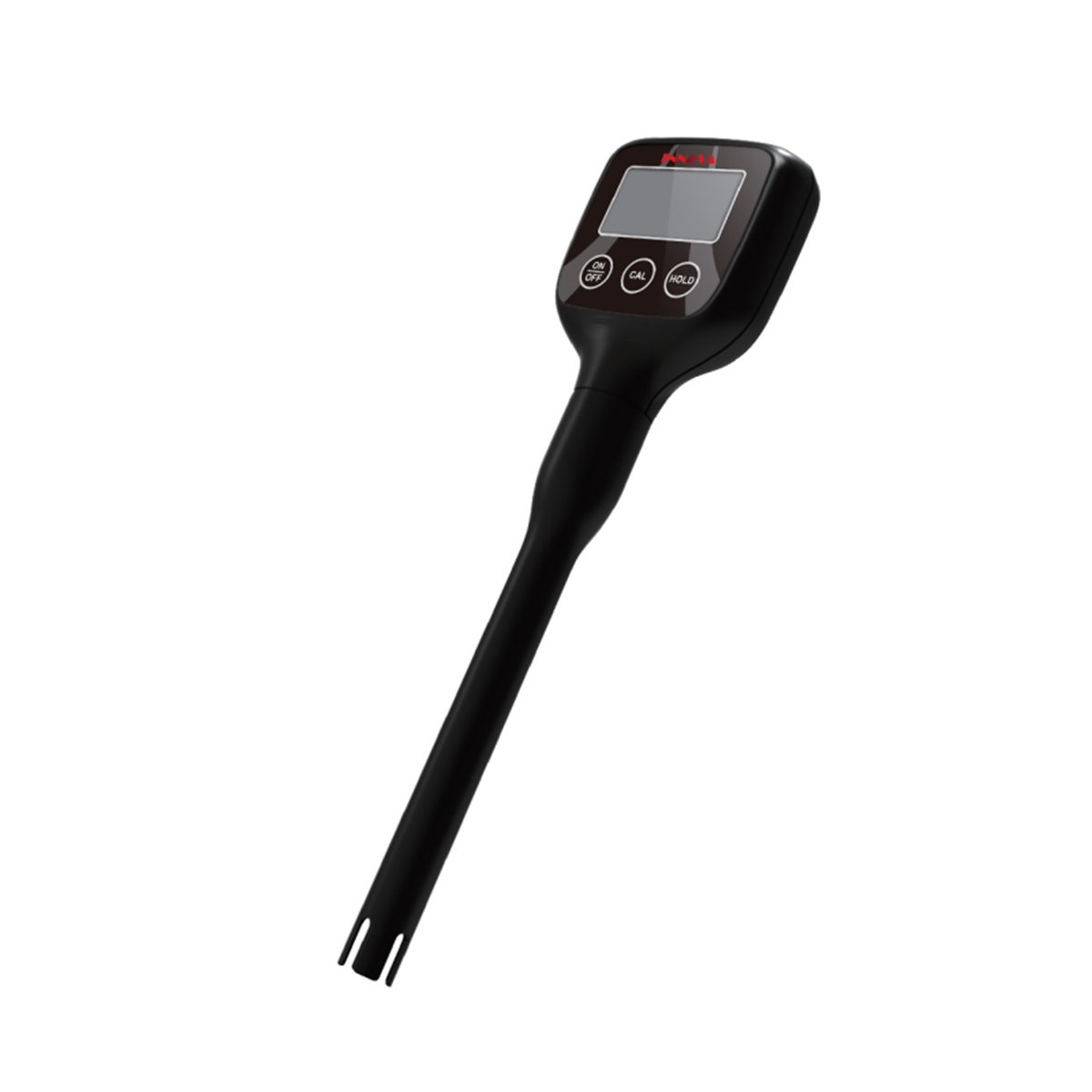

IP-311 Pocket Conductivity Meter  Main Features



● Mini and ultra-thin design with size 180×50×20 mm.
● Automatic calibration, automatic switch off, and low voltage alarm.
● IP57 waterproof and easy-to-read LCD screen, replaceable electrode.
● Used to test the conductivity value of river water and wastewater.


SPECIFICATIONS

ModelIT-711LIT-711HIT-711PIT-711C
DescriptionLab conductivity meter. Measure the conductivity of common water solutions, especially widely used in the areas of education and scientific research.High precision conductivity meter. Suitable for high precision conductivity measurement in scientific research, quality control,  biotechnology and fine
chemistry industry.
High purity water conductivity meter. Measure the conductivity of reverse osmosis water, distilled water and high purity water in power plants, microelectronics and pharmaceutical industriesHigh concentration conductivity meter
Measurement rangeConductivity:
(0.00~20.00) μS/cm
(20.0~200.0) μS/cm
(200~2000) μS/cm
(2.00~20.00) mS/cm
(20.0~200.0) mS/cm
Conductivity:
(0.00~20.00) μS/cm
(20.0~200.0) μS/cm
(200~2000) μS/cm
(2.00~20.00) mS/cm
(20.0~200.0) mS/cm
(200~2000) mS/cm
Resistivity: (0 ~100) MQ·cmResistivity: (0 ~100) MQ·cm
TDS: (0 ~100) g/LTDS: (0 ~100) g/L
Salinity: (0 ~100) pptSalinity: (0 ~100) ppt
Resolution0.01/0.1/1μS/cm  0.01/0.1mS/cm
AccuracyElectrode: ±1.0%FS
lnstrument: ±1.50%FS
Electrode: ±0.5% FS
lnstrument: ±1.00%FS
Temperature compensation(0 ~100)℃ (automatic)
Electrode constant0.1/1/10 cm-1
Temp.Measuring range-10℃~110℃
Resolution0.1℃
Accuracy5~60℃: ±0.5℃   Others: ±1.0℃5~60℃: ±0.3℃   Others: ±0.5℃
Data storage300 sets
Storage contentMeasurement series number, measuring value, temperature, ATC or MTC status, date and time
PowerDC12V/1A
CommunicationWireless Bluetooth, USB
Dimensions & Weight240×170×70mm/600g
Ambient temperature5~35℃
Ambient humidity≤80%
IP gradeIP54


ModelIS-611LIS-611HIS-611PIS-611C
Display6.5 inch LCD screen
Measurement rangeConductivity:
(0.00~20.00) μS/cm
(20.0~200.0) μS/cm
(200~2000) μS/cm
(2.00~20.00) mS/cm
(20.0~200.0) mS/cm
Conductivity:
(0.00~20.00) μS/cm
(20.0~200.0) μS/cm
(200~2000) μS/cm
(2.00~20.00) mS/cm
(20.0~200.0) mS/cm
(200~2000) mS/cm (K=10)
Resistivity: (0 ~100) MQ·cmResistivity: (0 ~100) MQ·cm
TDS: (0 ~100) g/LTDS: (0 ~100) g/L
Salinity: (0 ~100) pptSalinity: (0 ~100) ppt
Resolution0.01/0.1/1μS/cm
0.01/0.1mS/cm
0.01/0.1/1μS/cm
0.01/0.1/1mS/cm
AccuracyElectrode: ±1.0%FS
lnstrument: ±1.50%FS
Electrode: ±0.5% FS
lnstrument: ±0.8%FS
Temp.Measuring range0℃~100℃
Temp.Resolution0.1℃
Temp.Accuracy±0.5℃
Data storage150 sets
Power12V/1A
CommunicationBluetooth, USB
Dimensions & Weight240×170×70mm/600g
Ambient temperature5~40℃
Ambient humidity5~85%


ModelIL-511
Measurement rangeConductivity:
(0.00~20.00) μS/cm
(20.0~200.0) μS/cm
(200~2000) μS/cm
(2.00~20.00) mS/cm
(20.0~200.0) mS/cm
Resistivity: (0 ~100) MQ·cm
TDS: (0 ~100) g/L
Salinity: (0 ~100) ppt
Resolution0.01/0.1/1μS/cm
0.01/0.1mS/cm
AccuracyElectrode: ±1.0%FS
lnstrument: ±1.50%FS
Temp.Measuring range0℃~100℃
Temp.Resolution0.1℃
Temp.Accuracy±0.5℃
Temp. compensation range(0 ~100)℃ (automatic)
Data storage300 sets
PowerDC 5V/1A
CommunicationUSB
Dimensions & Weight190×130×10mm/300g
Ambient temperature5~35℃
Ambient humidity≤85%


ModelIP-311
Conductivity measurement range(0~99.9) μS/cm
(100~999) μS/cm
(1.00~10.00) mS/cm
Resolution0.1/1μS/cm
0.01mS/cm
Accuracy±3%FS
Calibration1 point
Temp. compensation range(0 ~60)℃
PowerCR2032 button battery
Battery life100 hours
Dimensions & Weight180×50×20mm/80g (instrument)
200×65×50mm/140g (Packing)
IPgradeIP57
